G657A1 Bow Type Drop Fiber Optic Cable 2 Core Indoor FTTH
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GJYXFH |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 2 Core | Fiber Type | G657A1 |
|---|---|---|---|
| Strength Member | Two Steel Wire | Structure | Tight Buffer |
| Jacket | PE Or LSZH Outer Sheath | Color | Black |
| Highlight | G657A1 Drop Wire Fiber Optic, Bow Type Drop Wire Fiber Optic, Simplex Drop Wire Fiber Optic | Name | Outdoor Optical Cable |
| Highlight | G657A1 bow type fiber optic cable,2 core indoor FTTH cable,drop fiber optic cable with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description

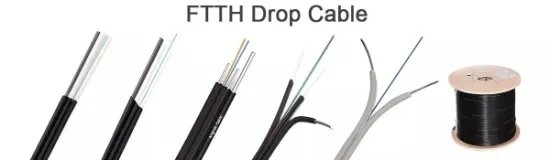

FTTH GJYXFH Butterfly-Shaped Optical Fiber Cable
Simplex Bow Type G657A1 Drop Wire Fiber Optic 2 Core
Product Specifications
| Attribute | Value |
|---|---|
| Fiber Count | 2 Core |
| Fiber Type | G657A1 |
| Strength Member | Two Steel Wire |
| Structure | Tight Buffer |
| Jacket | PE Or LSZH Outer Sheath |
| Color | Black |
Product Highlights
G657A1 Drop Wire Fiber Optic, Bow Type Drop Wire Fiber Optic, Simplex Drop Wire Fiber Optic
Product Description
Ind-Simplex Bow Type G657A1 Drop Wire Fiber Optic 2 Core type single mode duct drop cable communication wire for telecommunication networks.
The butterfly-shaped optical fiber cable places the optical fiber in the center with two parallel FRP wires on both sides as reinforcing elements, extruded with a low-smoke halogen-free flame-retardant sheath.

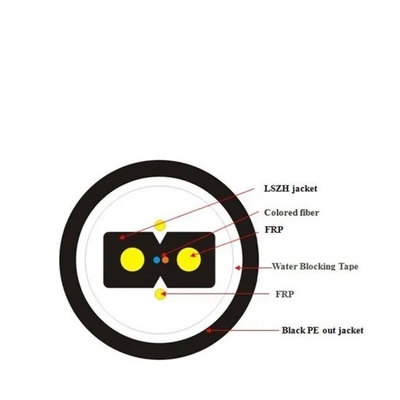

Structure
- Bow-tie type cross-section design
- Two parallel FRP wire as strength member
- G657A1 flex durable fiber in the middle
- Reinforcing member (FRP) placed on each side of the groove
- PE or LSZH outer jacket
Key Features
- Special bending-resistant optical fiber for greater bandwidth and enhanced network transmission performance
- Two parallel FRP or metal reinforcements provide good pressure resistance and fiber protection
- Simple structure, lightweight and highly practical
- Unique groove design for easy peeling and connection, simplifying installation and maintenance
- Low-smoke halogen-free flame-retardant polyethylene or PVC sheath for environmental safety
- Compatible with various on-site connectors for field termination
- Soft and lightweight design ideal for access network applications
Strength Member
The strength member is made of FRP, providing tensile strength to the cable. The sheath protects the cable from water intrusion.
Outer Jacket
LSZH sheath is extruded over the fiber for enhanced protection.
Cable Sheath Marking
Each cable has the following information clearly marked on the outer jacket:
- Manufacturer name
- Year of manufacture
- Cable and fiber type
- Length mark (printed on each meter)
- Custom markings as per customer requirements
Applications
- Indoor wiring for direct end-user connections
- Building entry point optical cable introduction
- FTTH (Fiber To The Home) user indoor wiring
