96 Cores Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication, Aerial, Duct, Telecom, Network | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Fiber Count | 96 Fibers | Central Strength Member | FRP Or Steel Wire |
| Armor | Corrugated Steel Tape | Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) |
| Highlight | GYTS53 Loose Tube Armored Cable, GYTS53 96 Core Fiber Optic Cable, GYTS53 Outdoor Armored Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | armored fiber optic cable outdoor,armored outdoor fiber optic cable,gyts53 fiber optic cable outdoor |
||
Product Description
Outdoor fiber optic cable GYTS53 direct buried stranded loose tube armored cable
1. Description
- The type of this fiber with single-mode G652 G655 G657 or multimode with a loose tube which is made of high modulus plastic, used a water-resistant filling compound for filling.
- steel wire locates as a central metallic strength member .for some cable ,a steel wire sometimes sheathed with polyethylene .the tubes ( and filers ) are stranded around the strength member into a compact and circular cable core.double sides chromium for PSP with PE as sheath .
- by single or double wire for lashing installation,also with PE for outer sheath.
Application
- Adopted to Outdoor distribution fiber optic cable system .
- Suitable for aerial .duct pipeline, direct burried installation lashing menthod
- Long distance and local area network(LAN) communication system.
2. Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- PE/LSZH sheath protects cable from ultraviolet radiation
- 100% cable core filling
3.Specifications
| Cable Type | GYTS53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter | Nominal Weight |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term | |||
| 4 | 9.5 | 80 | 4 | 1 | 3000 | 1000 | 3000 | 1000 |
| 12 | 9.5 | 80 | 6 | 2 | 3000 | 1000 | 3000 | 1000 |
| 24 | 9.5 | 80 | 6 | 4 | 3000 | 1000 | 3000 | 1000 |
| 96 | 14.6 | 220 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 288 | 21.6 | 310 | 12 | 24 | 3000 | 1000 | 3000 | 1000 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

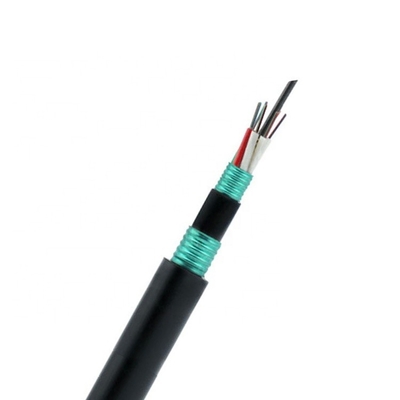

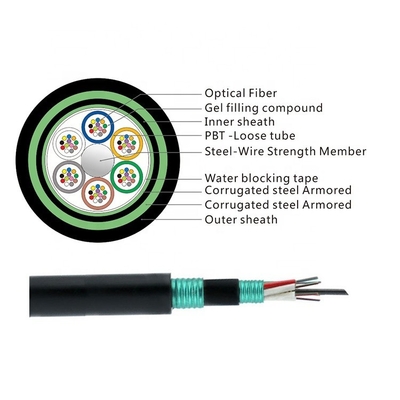

4. Structure and Product Pictures
5.Packing and Shipping

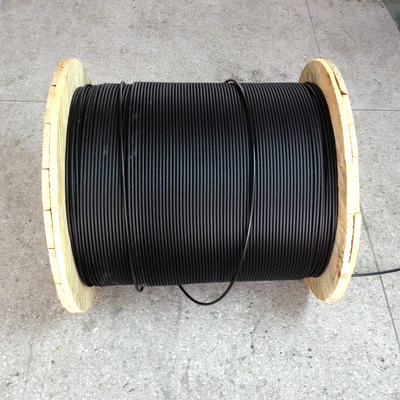

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
