FRP Loose Tube Fiber Optic Cable 12 Core GYFTY PE / LSZH Fiber Optic Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYFTY |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 2-144 | Fiber Type | G652D, Single Mode |
|---|---|---|---|
| Strength Member | FRP | Structure | Loose Tube Stranded |
| Single Armour Material | Aramid Yarn | Jacket | PE Or LSZH Outer Sheath |
| Color | Black | Water Blocking Material | Water Blocking Tap & Filling Compound |
| Application | Telecommunication, Aerial, Duct, Telecom, Network | Name | Outdoor Optical Cable |
| Highlight | Loose Tube Fiber Optic Cable GYFTY,Loose Tube Fiber Optic Cable 12 Core,LSZH Fiber Optic Cable |
||
You can tick the products you need and communicate with us in the message board.
Product Description
All Dielectric Loose Tube FRP 12 Core Fiber Optic Cable GYFTY with Aramid Yarn PE/LSZH Outer Sheath
Product Specifications
| Attribute | Value |
|---|---|
| Fiber Count | 2-144 |
| Fiber Type | G652D, Single Mode |
| Strength Member | FRP |
| Structure | Loose Tube Stranded |
| Single Armour Material | Aramid Yarn |
| Jacket | PE Or LSZH Outer Sheath |
| Color | Black |
| Water Blocking Material | Water Blocking Tap & Filling Compound |
| Application | Telecommunication, Aerial, Duct, Telecom, Network |
Product Overview
GYFTY outdoor cable is an all-dielectric loose tube 12-144 core FRP reinforced fiber optic cable designed for demanding outdoor applications.
Key Features
- Small, lightweight design for duct and aerial installation
- FRP reinforced core with water blocking fillers
- Inner polyethylene layer for added protection
- "SZ" bidirectional layer twisting technology
- Step-by-step water blocking ointment filling
- Stable fiber length control
- Minimal additional attenuation and unchanged dispersion
- Excellent environmental performance (-10℃ to +70℃)
- Capacity for up to 288 fibers
- UV and moisture-resistant design
- All-dielectric structure for superior EMI protection
Applications
Suitable for various installation methods including overhead, pipeline, and direct burial applications. Ideal for both backbone and access networks in telecommunications infrastructure.

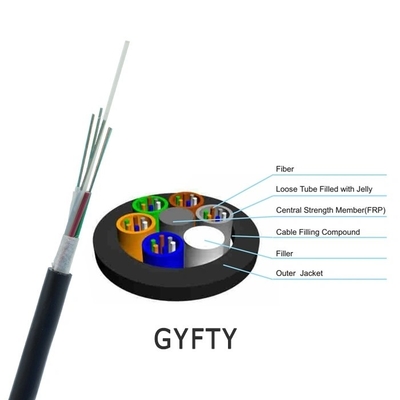

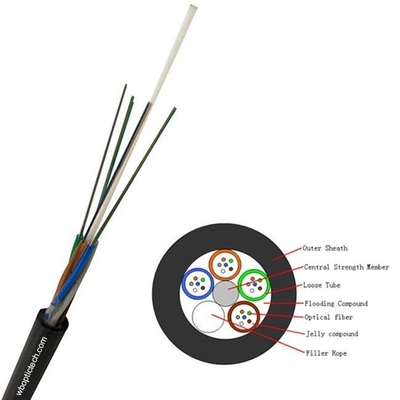

Structural Characteristics
Completely non-metallic construction featuring non-metallic center reinforcement with glass fiber or aramid fiber reinforcement and polyethylene outer sheath. Custom structures available based on environmental and transmission requirements.
Performance Advantages
The all-dielectric design provides excellent resistance to electromagnetic interference, lightning strikes, and static electricity, making it particularly suitable for areas with severe power system interference.
Ideal Use Cases
Perfect for long-distance communication, inter-office networks, and optical cable entry points. Especially recommended for environments with significant power system interference, lightning activity, or electromagnetic disturbances.
