Central UniTube Fiber Cable Single Mode Corrugated Steel Armor Duct Aerial GYXTW Fiber Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | UniTube Fiber Cable | Loose Tube Material | PBT |
|---|---|---|---|
| Model | FC/UPC~SC/UPC | Cable Core | 2, 4, 6, 8, 10, 12F |
| Water Blocking System | Filling Compound/Dry Water Resistant | Temperature Range Storage | -50℃ To +70℃ |
| Fiber Mode | Single Mode | Tube Diameter | 3.0mm |
| Outer Diameter | 2.0*5.0mm | Installation Method | Indoor/Outdoor |
| Bend Radius | 20x Cable Diameter | Core Type | Single Mode |
| Strentherning Member | FRP | Cable Diameter | 9.0mm |
| Length Per Drum | 2KM Or Customized | Type | Fiber Drop Cable |
| Highlight | Aerial Fiber Optic Cable, Central Uni-Tube Fiber Optic Cable, Single-Mode Fiber Optic Cable | ||
| Highlight | UniTube Fiber Cable Single Mode,Central UniTube Fiber Cable,Aerial GYXTW Fiber Cable |
||
Product Description

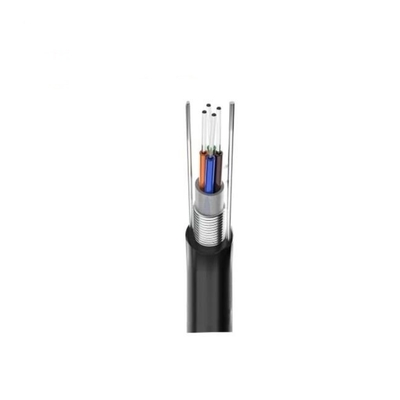

Single-Mode Optical Central Uni-Tube Corrugated Steel Armor Duct Aerial GYXTW Fiber Optic Cable
Description
OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a FRP central strength member into a compact and circular cable core. The cable is completed with Polyethylene (PE) jacket.
Features
- Small diameter and light weight
- Semi-dry core design,easy for splicing
- Suitable for long distance air blowing installation
