Outdoor Span 100m Optical Fiber Drop Cable , Mini ADSS Fiber Optic Cable 8 Core
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Loose Tube Material | PBT | Model | FC/UPC~SC/UPC |
|---|---|---|---|
| Cable Core | 2, 4, 6, 8, 10, 12F | Water Blocking System | Filling Compound/Dry Water Resistant |
| Temperature Range Storage | -50℃ To +70℃ | Fiber Mode | Single Mode |
| Tube Diameter | 3.0mm | Outer Diameter | 2.0*5.0mm |
| Installation Method | Indoor/Outdoor | Bend Radius | 20x Cable Diameter |
| Core Type | Single Mode | Strentherning Member | FRP |
| Cable Diameter | 9.0mm | Length Per Drum | 2KM Or Customized |
| Type | Fiber Drop Cable | Highlight | 100m Outdoor Span Fiber Optic Cable, 8core Outdoor Span Fiber Optic Cable, Mini ADSS Fiber Optic Cable |
| Name | Universal Fiber Optic Cable | ||
| Highlight | 100m Optical Fiber Drop Cable,ADSS Fiber Optic Cable 8 Core,Mini ADSS Fiber Optic Cable |
||
Product Description

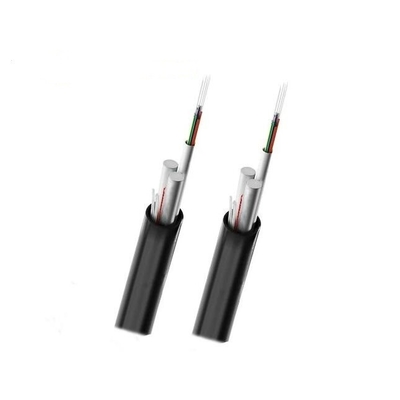

8core Outdoor Span 100m As Drop Optical Fibre Mini ADSS Fiber Optic Cable
Description

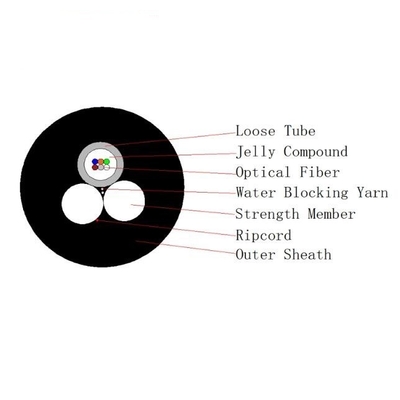

OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a FRP central strength member into a compact and circular cable core. The cable is completed with Polyethylene (PE) jacket.
Features
- Small diameter and light weight
- Semi-dry core design,easy for splicing
- Suitable for long distance air blowing installation
Specification
