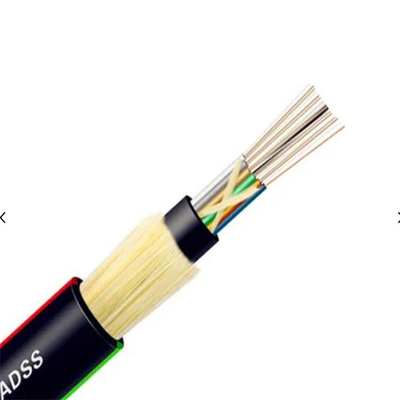

Kevlar Fiber Optic Cable 100m 200m 300m Span ADSS 24 48 96 144 Core Optic Fiber Cable ADSS
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | ADSS | Application | Telecommunication, Aerial, Duct, Telecom, Network |
|---|---|---|---|
| Highlight | Kevlar Yarn 100M Optic Fiber Cable, Kevlar Yarn 200M Optic Fiber Cable, Kevlar Yarn 300M Optic Fiber Cable | Jacket | PE |
| Fiber | G652D, G657A1, G657A2 | Name | ADSS Cable |
| Highlight | Kevlar Fiber Optic Cable 100m,Kevlar Fiber Optic Cable 200m,144 Core Optic Fiber Cable ADSS |
||
Product Description
Product Description
Manufacturer Supplies Kevlar Yarn 100M 200M 300M Span ADSS 24 48 96 144 Core Optic Fiber Cable
Description:
1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2. The tubes are filled with a water-resistant filling compound.
3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4. After the cable core is filled with filling compound.
5. it is covered with thin PE (polyethylene) inner sheath.
Characteriatic:
1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4.Large span lengths and the largest span is over 1000m
Parameter:
| Cable Type | Fiber Count | Tubes | Fillers |
Cable Diameter mm |
Cable Weight kg/km | Max working tension kN | Strength member CSA mm2 | Modulus of elasticity kN/mm2 |
| ADSS | 2 | 1 | 4 | 12.5 | 136 | 1.5 | 4.6 | 7.6 |
| ADSS | 4 | 2 | 3 | 13.0 | 142 | 2.25 | 7.6 | 8.3 |
| ADSS | 8 | 3 | 2 | 13.3 | 148 | 3.0 | 10.35 | 9.45 |
| ADSS | 10 | 4 | 1 | 13.6 | 156 | 3.6 | 13.8 | 10.8 |
| ADSS | 12 | 5 | 0 | 13.8 | 159 | 4.5 | 14.3 | 11.8 |
| ADSS | 14 | 6 | 0 | 14.5 | 177 | 5.4 | 18.4 | 13.6 |
| ADSS | 16 | 4 | 1 | 14.9 | 185 | 6.75 | 22.0 | 16.4 |
| ADSS | 20 | 5 | 0 | 15.1 | 193 | 7.95 | 26.4 | 18.0 |
| ADSS | 24 | 6 | 0 | 15.5 | 201 | 9.0 | 32.2 | 19.1 |
| ADSS | 28 | 7 | 1 | 15.6 | 208 | 10.5 | 33.0 | 19.6 |
| ADSS | 32 | 8 | 0 | 16.3 | 226 | 12.75 | 40.0 | 21.0 |
| ADSS | 36 | 9 | 1 | 16.8 | 242 | 15.45 | 48.0 | 24.0 |
| ADSS | 42 | 10 | 0 | 17.2 | 253 | 16.2 | 51.0 | 25.1 |
| ADSS | 48 | 11 | 1 | 17.9 | 266 | 18.0 | 58.8 | 25.1 |
Optical Characteristic:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation(+20ºC) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Packaging Detail: ADSS 2-288 Core Optical Fiber Cable package are with export wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cable drum from customers. welcome to contact us!
Specifications
· OEM 2-288 Core Optical Fiber Cable
· Cutomer LOGO
· Factory price
· 25 years quality guaranteed
