All-Dielectric Self-Supporting Outdoor Aerial ADSS 96 Core Fiber Optic Cable Span 100-1000m
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | ADSS | Application | Telecommunication, Aerial, Duct, Telecom, Network |
|---|---|---|---|
| Highlight | All Dielectric 96 Core Fiber Optic Cable, Aerial ADSS 96 Core Fiber Optic Cable, 1000m ADSS Fiber Optic Cable | Jacket | PE Or AT |
| Fiber | G652D, G657A1, G657A2 | Name | ADSS Cable |
| Highlight | aerial 96 core fiber optic cable,aerial 96 core adss fiber optic cable,g652d 96 core fiber optic cable |
||
Product Description
Product Description
ADSS All-dielectric Self Support Outdoor Aerial Fiber Optic Cable 96 core
1. Description
ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
2. Features
-
All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure
-
Large number of fiber cores, light weight, can be installed with power line, saving resources
-
Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots
-
Small thermal expansion, the varation of the arc of the cable line is small when the temperature changes greatly
-
Double layer of aramid yarn as strength member, meet the harsh enviroment such as the high-altitudes salt lake area or the line with a span of more than 800 meters
-
Three layer sheath, PE/AT as outer jacket
3.Specifications
| No. of Fibers | 2-36 | 38-72 | 74-96 | 98-120 | 122-144 | 146-216 |
| Max No. of Fibers/Tube | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Tube(+Fillers) | 6 | 6 | 8 | 10 | 12 | 18(2 layers) |
| Nominal Diameter | 10.7 | 13.2 | 13.9 | 15.4 | 16.8 | 17 |
| Cable Weight(kg/km) | 89 | 135 | 150 | 185 | 220 | 225 |
| Fiber Type | G.652D | |||||
| Max .Allowable Tension | Short Term :3500N | |||||
| Long Term:100N MAT:3.5Kn RTS:9.0Kn | ||||||
| Wind Speed: ≤30m/s Ics:0mm | ||||||
| Min.Bend Radius (mm) | Dynamic:20D Static:10D (D: Cable diameter) | |||||
| Temperature Range | -40°C~+70°C(Transportation& Storage) | |||||
| -35°C~+65°C(Installation) | ||||||
| -40°C~+70°C(Operation) | ||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

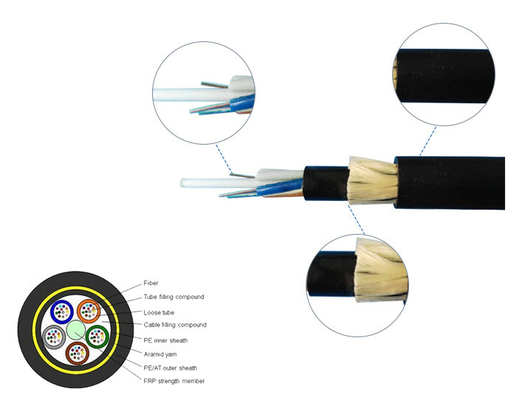

4.Structure and Product Pictures
5.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
