All Dielectric Self Supporting Cable ADSS Aerial Fiber Optic Cable Lightweight
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | All Dielectric Self Supporting Cable | Model No | ADSS |
|---|---|---|---|
| Loose Tube Material& Filling Material | PBT&Jerry | Color Of Loose Tube | Blue, Orange,Green , Brown,Red Etc |
| Central Strength Member | Non-Metallic | Strength Material | High Flexible Amaid Yarn |
| Core Moisture Protection Methodology | Water Blocking Tape Or Filling Compound | Maximum Span | 1500m |
| Installation Style | Self-Support Aerial | Highlight | Adss Cable, Dielectric Fiber Optic Cable |
| Highlight | All Dielectric Self Supporting Cable ADSS,ADSS Aerial Fiber Optic Cable,Aerial Fiber Optic Cable Lightweight |
||
Product Description

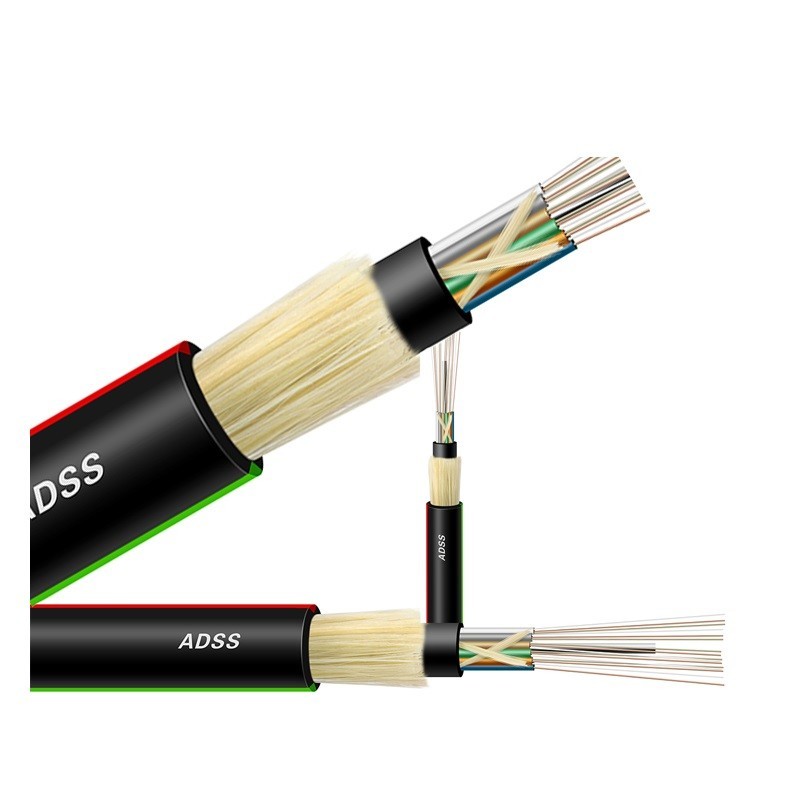

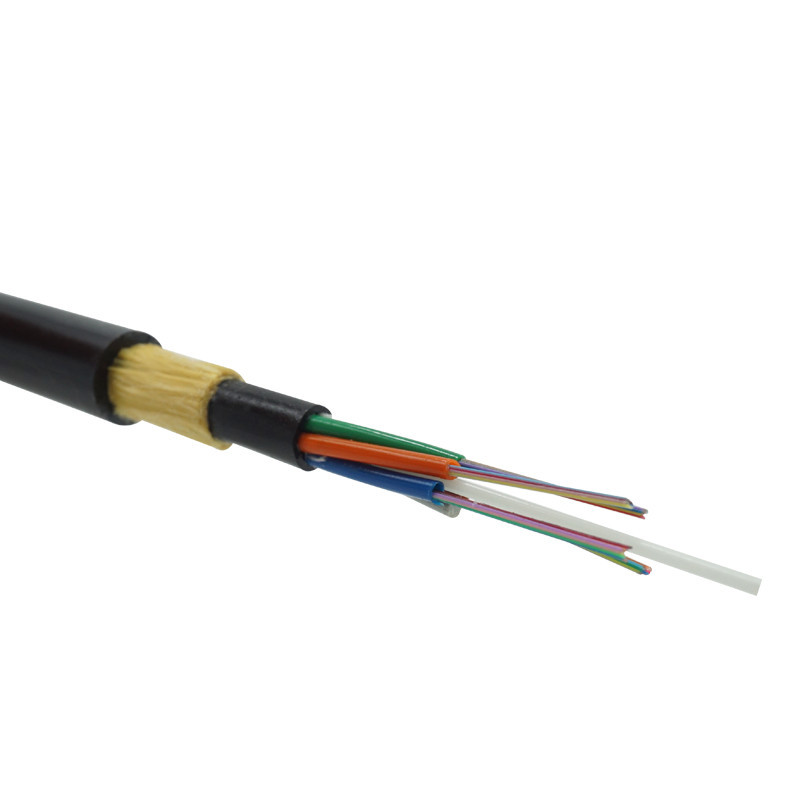

All Dielectric Self-Supporting ADSS Cable
Optical Fiber Cable ADSS

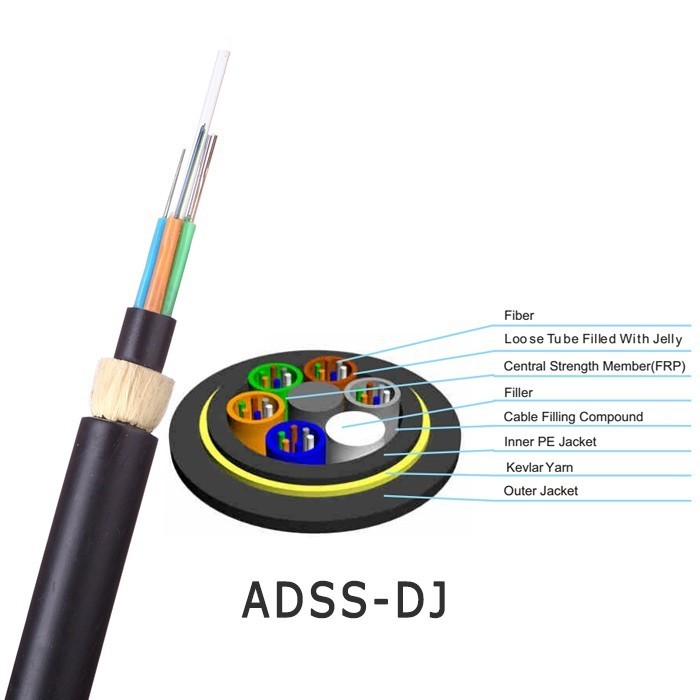

Structure characters
Loose tube with non-metallic strengthen member
High flexible amaid yarn
Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers.
2. Lightweight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network.
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date
for 24 core fiber, 800m span
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
