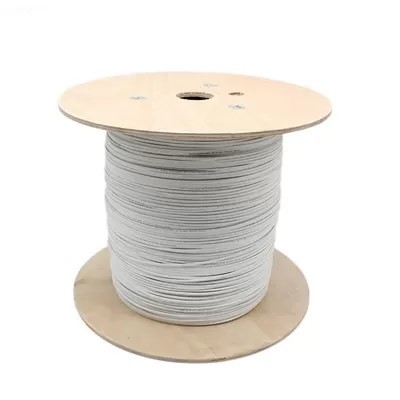

Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | FTTH Indoor Drop Cable | Fiber Type | Single-Mode G657A1/G652D/G657A2 |
|---|---|---|---|
| Number Of Fiber | 2 | Construction | Self-supporting With FRP |
| Cable Diameter | (2.0±0.2)X(5.0±0.2)mm | Outer Jacket Materail | LSZH/PVC |
| Bending Radius | 10D/20D (mm) | Highlight | G652D FTTH Indoor Drop Cable, G652D GJXH Indoor Drop Cable, G652D Single Mode Gjxh Cable |
| Highlight | GJXH FTTH Indoor Drop Cable,FTTH Indoor Drop Cable G657A,FTTH 4 Core Fiber Drop Cable |
||
Product Description
Single Mode GJXH FTTH Indoor Drop Cable G657A G652D 1 2 4 Core

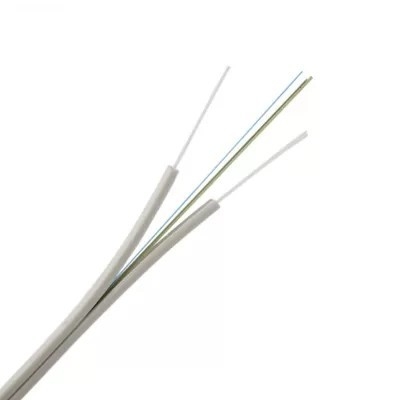

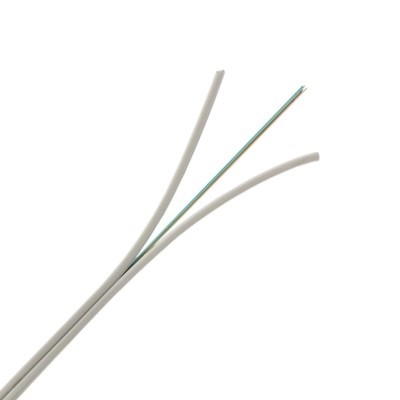

1 2 4 Core GJXH FTTH Indoor Drop Cable G657A G652D Figure 8 Drop Fiber Optic Cable
FTTH drop cable is constructed with one or two single- mode fiber (G.657A1 ). The cable
is protected by a dielectric strength member made of single-stranded steel wire and a LSZH outer jacket.
Designed for Indoor installation, the cable is well suited for connections between the dome closure and
small dwelling unit/warehouse and independent villas.
Features
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
2. Two parallel steel wire strength members ensure good performance of crush resistance
to protect the fiber;
3. Simple structure, light weight and high practicability;
4. Novel flute design, easily strip and splice, simplify the installation and
maintenance;
5. Low smoke, zero halogen and flame retardant sheath.
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property;
2. Two parallel steel wire strength members ensure good performance of crush resistance
to protect the fiber;
3. Simple structure, light weight and high practicability;
4. Novel flute design, easily strip and splice, simplify the installation and
maintenance;
5. Low smoke, zero halogen and flame retardant sheath.
Application
1. Ideal use for FTTH applications
2. Horizontal cabling
2. Horizontal cabling
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 2 | |
| Diameter | mm | 4.0*2.0 | |
| Weight | Kg/km | Approx.17.7 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
