G657A1 A2 G652D FTTH Flat Drop Cable Metallic FRP GJYXCH Single Mode SM
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Product Details
| Model NO | GJYXCH | Core | Single-Mode G657A1 |
|---|---|---|---|
| Sheath Material | LSZH | Cable Size | 4.0*2.0 |
| Messenger Size | 1.0mm/1.1mm/1.2mm | Cable Diameter | (2.0±0.2)X(5.0±0.2)mm |
| HS Code | 85447000 | Length | 1000m/2000m Per Drum |
| Printing | Printing | Highlight | G657A1 FTTH Flat Drop Cable, G657A1 Metallic Flat Drop Cable, 1.2mm Gjyxch Drop Cable |
| Highlight | G657A1 FTTH Flat Drop Cable,G652D FTTH Flat Drop Cable,Flat Drop Fiber Cable GJYXCH |
||
Product Description

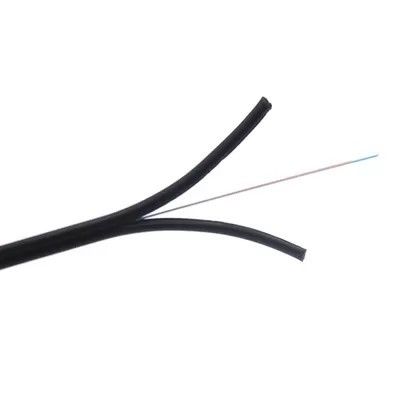

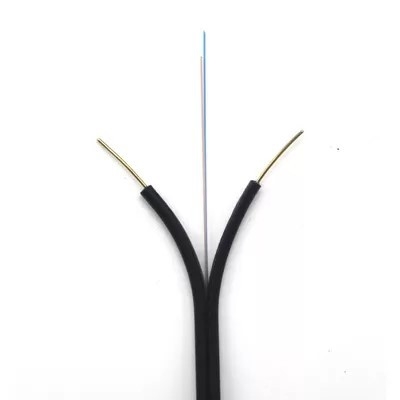

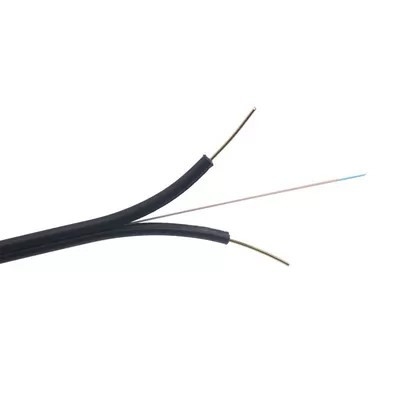

FTTH Flat Drop Cable Metallic FRP Gjyxch Single Mode Sm G657A1 A2 G652D
FTTH Drop Flat Cable Metallic FRP Gjyxch Single Mode Sm G657A1 A2 G652D Optica Fiber Cable 1 2 4core
The optical fiber unit is positioned in the center Two parallel steel are placed at the two sides.A steel wires as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.The cable is widely use in FTTH project.
Characteristics
1. special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
3.Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
4. Simple structure, light weight and high practicability;
5. Novel flute design, easily strip and splices implify the installation and maintenance;
6. Low smoke, zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
1. special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
3.Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
4. Simple structure, light weight and high practicability;
5. Novel flute design, easily strip and splices implify the installation and maintenance;
6. Low smoke, zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 2 | |
| Diameter | mm | 4.0*2.0 | |
| Weight | Kg/km | Approx.17.7 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| O.D of steel wire | mm | 1.0±0.05mm | |
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
