Anatel Self Supporting Fiber Optic Cable Singlemode FTTH Wire 1km 2km Per Drum
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Self Supporting Fiber Optic Cable | Model NO. | GJYXCH |
|---|---|---|---|
| Core Numbers | 4cores | Certification | CE,FCC,ROHS,Anatel |
| Fiber | Single Mode | Self-Supporting Strength Member | Steel Wire |
| Applications | Outdoor | HS Code | 854470000 |
| Highlight | Anatel Self Supporting Fiber Optic Cable, FTTH Self Supporting Fiber Optic Cable, 4cores Self Supporting Ftth Wire | ||
| Highlight | Anatel Self Supporting Fiber Optic Cable,Self Supporting Fiber Optic Cable Singlemode,FTTH Wire 1km |
||
Product Description

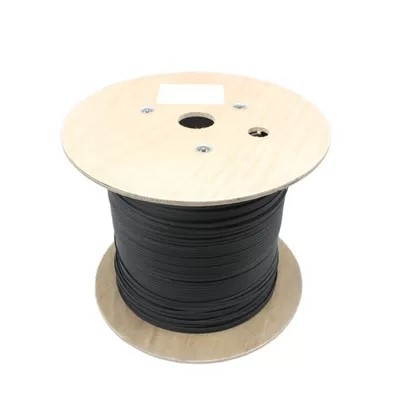

Anatel Self Supporting Fiber Optic Cable Ftth Wire 1km 2km Per Drum
1 2 4 Core Self-Supporting Outdoor FTTH Drop Fiber Cable 1km 2km Per Drum With Anatel Certificate

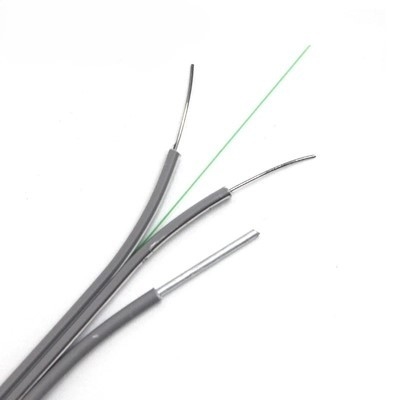

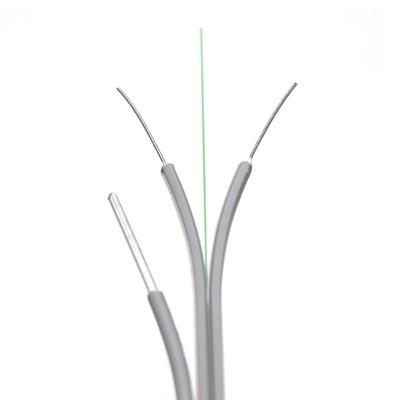

The optical fiber unit is positioned in the centre ,two parallel steel wires are placed at the two sides ,Another steel wire as the self-supporting strength member is also applied ,then the cable is completed with a black or color LSZH Sheath .
Features
1. Two Steel Wires as the strength member
2. A steel wire is applied as the additional strength member
3. Suitable for dropping in residential buildings, rat proof function, reliable and stable quality
4. Adopt fiber with small bending radius (G.657), offering good bending resistance;
5. Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;
6. Safe and reliable for installation;
7. Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
8. Suitable for termination at the field or factory pre-connectorized
9. low smoke, zero halogen and flame retardant sheath
10. Fiber Type: G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,OM3-150 ,OM3-300 ,OM4
11. Jacket material: PVC, LSZH
Application
Suitable for aerial dropping in separate residential buildings, stable and reliable performance, fitting for cable installation with long span
1. Two Steel Wires as the strength member
2. A steel wire is applied as the additional strength member
3. Suitable for dropping in residential buildings, rat proof function, reliable and stable quality
4. Adopt fiber with small bending radius (G.657), offering good bending resistance;
5. Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;
6. Safe and reliable for installation;
7. Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
8. Suitable for termination at the field or factory pre-connectorized
9. low smoke, zero halogen and flame retardant sheath
10. Fiber Type: G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,OM3-150 ,OM3-300 ,OM4
11. Jacket material: PVC, LSZH
Application
Suitable for aerial dropping in separate residential buildings, stable and reliable performance, fitting for cable installation with long span
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 2 | |
| Diameter | mm | 5.0*2.0 | |
| Weight | Kg/km | Approx.21 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| O.D of steel wire | mm | 1.0±0.05mm | |
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
