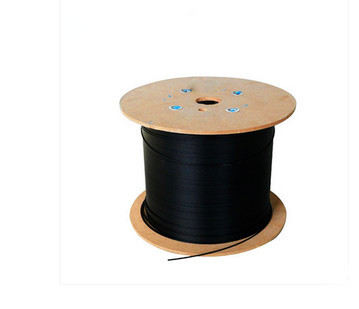

LSZH / PVC Jacket 1 2 4 Core Single Mode Fiber Optic Cable / GJXH Cable FTTH Drop Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 4 Core Single Mode Fiber Optic Cable | Color Of Loose Tube | Blue, Orange, Green, Brown |
|---|---|---|---|
| Jacket Color | Black, White | Outer Sheathsion | LSZH Or Pvc |
| Highlight | Fiber Optic Drop Cable, Fiber Optic Indoor Cable, 3.1*2.0mm Indoor Fiber Optic Cable | Strength Member | Steel Or FRP |
| Highlight | 4 Core Single Mode Fiber Optic Cable,GJXH Cable,4 Core SM Fiber Optic Cable |
||
Product Description
Product Description
LSZH/PVC Jacket 1 2 4 Core Single Mode GJXH Flex Durable Easy Installation FTTH Drop Cable
This FTTH Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.
Applications
1.Indoor wiring system
2.FTTH, terminal system
3.Indoor shaft, building wiring
Properties
1. Bow-tie type cross-section design, LSZH or PVC jacket
2. Two parallel steel as strength member to protect the fiber and provide adequate tension and pressure
3. Flex durable fiber to provide greater bandwidtj and enhance network transmission characteristics
4. Easy pleeled off, light weight, small size, unique groove design, easy for maintance
Technical Date
ITEMS |
UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
