4 Core Single Mode Optical Fiber Cable GJYXCH Long Distance FTTH Drop Cable LSZH/PVC Jacket
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color Of Loose Tube | Blue, Orange, Green, Brown | Jacket Color | Black, White |
|---|---|---|---|
| Outer Sheathsion | LSZH Or Pvc | Highlight | Fiber Optic Drop Cable, Breakout Fiber Optic Cable, Long Distance FTTH Drop Cable |
| Strength Member | Steel | Name | Indoor Fiber Optic Cable |
| Highlight | 4 Core Single Mode Fiber Optic Cable,Single Mode Optical Fiber Cable GJYXCH,Long Distance FTTH Drop Cable |
||
Product Description

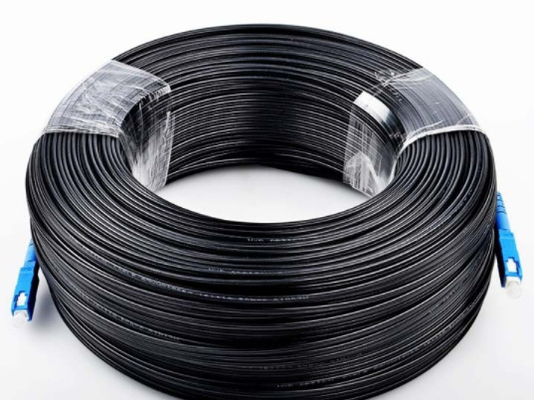

Black 4 Core Single Mode Optical Fiber Cable Long Distance FTTH Drop Cable
This 4 core fiber optic cable has been designed for access building cable with good performance and easy installation.
Properties
1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients
Technical Date
ITEMS |
UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
