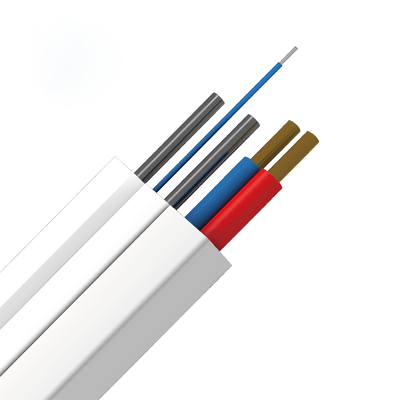

G657A1/G657A2 2 Core Optical Fiber Drop Cable Integrated With Two Copper Conductors For FTTH & Monitoring System
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Mingtong |
| Certification | ISO |
| Model Number | Single Mode |
| Minimum Order Quantity | 10km |
| Price | USD250~ 280/km |
| Packaging Details | 10X20X20 cm |
| Delivery Time | 8–15 working days |
| Payment Terms | T/T,L/C |
| Supply Ability | 30 km per week |
Product Details
| Copper Wire | 2PCS, Customizable Wire Diameter | Reinforcement Member | 2PCS Coated Steel Wire |
|---|---|---|---|
| Jacket Material | PVC / LSZH | Mode | Single ModeG.657A1 / G.657A2 |
| Standard Length | 1000m/roll, 2000m/roll | Color | White |
| Highlight | G657A1 fiber optic drop cable,FTTH optical cable with copper conductors,indoor fiber optic cable for monitoring |
||
Product Description
1. Product Introduction
This composite FTTH drop cable integrates 2 optical fibers, 2 copper wires and 2 tension steel wires in one flat sheath. It can transmit optical signal and supply power simultaneously, widely used for FTTH access, CCTV monitoring, intelligent equipment wiring, outdoor aerial laying projects.

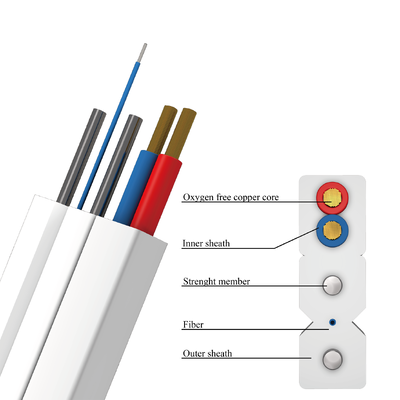

2. Internal Structure (Match Your Actual Cable)
- Central: 2 colored optical fiber cores (blue & orange single mode fiber G657A2)
- Middle layer: 2 insulated copper wires for power supply
- Two sides: 2 coated steel strength members for tensile & self-supporting
- Outer sheath: PVC / LSZH flame retardant jacket, anti-aging, weather resistant
3. Key Features
✅ Dual function: optical signal transmission + power supply in one cable
✅ Self-support design, suitable overhead aerial installation
✅ G657A bending insensitive fiber, good bending resistance
✅ Anti-UV, waterproof, outdoor long service life
✅ Custom fiber count, copper wire size, jacket material acceptable
✅ OEM & ODM customized length & package available
4. Application Scenarios
- FTTH fiber to the home broadband access project
- Outdoor CCTV camera monitoring wiring
- Integrated communication & power wiring for smart community
- Aerial self-laying communication line
5. Technical Specifications
-
Parameter Item Detailed Spec Fiber Type Single Mode G657A1 / G657A2 Fiber Count 2 Core Copper Wire 2PCS, customizable wire diameter Reinforcement 2PCS coated steel wire Jacket Option PVC / LSZH Working Temp -40℃ ~ +70℃ Laying Way Aerial / Duct Standard Length 1000m / 2000m per reel
6. Our Advantages
Professional fiber optic cable manufacturer with complete production & testing equipment, strict quality inspection before shipment, competitive factory direct price, fast delivery, professional export documentation support for global customers.
