Soft 245um Indoor Fiber Optic Cable 1 Core 2 Core 4 Core GJYXFCH FTTH Drop Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GJYXFCH |
| Minimum Order Quantity | 20km |
| Price | 500-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Indoor Fiber Optic Cable | Color Of Loose Tube | Blue, Orange, Green, Brown |
|---|---|---|---|
| Jacket Color | Black, White | Cable Dimension | 3.1*2.0mm |
| Highlight | Fiber Optic Drop Cable, Fiber Optic Indoor Cable, 245um Indoor Fiber Optic Cable | ||
| Highlight | 245um Indoor Fiber Optic Cable,2 Core FTTH Drop Cable,GJYXFCH FTTH Drop Cable |
||
Product Description

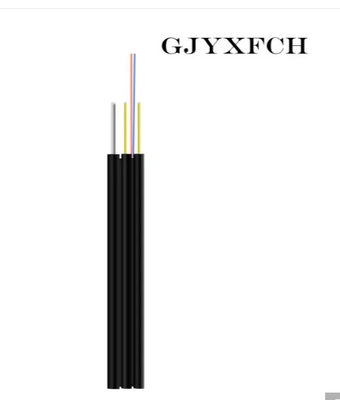

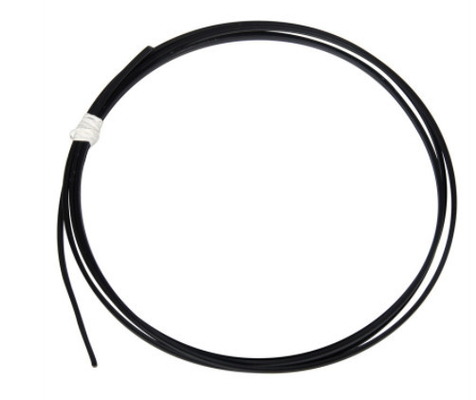

1 2 4 Core GJYXFCH FTTH Soft 245um Indoor Fiber Optic Cable
This FTTH 1-4 Core Indoor Fiber Optic Cable has been designed for access building cable with good performance and easy installation.
Structure &Properties
1. Good mechanical and environmental characteristics
2. FTTH 2 Core Indoor Fiber Optic Cable 's Flame retardant characteristics meet the requirements of relevant standard
3. The mechanical characteristics meet the requirements of relevant standard
4. Soft, flexible, easy to lay and splice and with big capacity data transmission
5. Meets various requirements of market and clients
Application
1. Outdoor wiring system
2. FTTH, terminal system
3. Indoor shaft, building wiring
Technical Date
ITEMS |
UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
