GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home

  • GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home
Place of Origin Guangdong, China
Brand Name Mingtong
Certification ISO
Model Number G.652D
Document G.652.D_20260623110738.pdf
Minimum Order Quantity 252KM
Price USD14~ 16
Packaging Details Packed in cartons, size: 51×61×31 cm
Delivery Time 8–15 working days
Payment Terms T/T,L/C
Supply Ability 10,000 km per week
Product Details
Product Name Bare Optical Fiber Length Option 25.2km / 50.4km / Custom
Model Number G.652D Mode Single Mode
Customization OEM, ODM, Custom Length, Custom Label
Highlight

1 core FTTH drop cable G657A2

,

single mode fiber optic cable LSZH jacket

,

indoor butterfly fiber optic cable steel strength
Leave a Message
Product Description
RC 2 Core 4 Core Fiber Optic Ftth Drop Cable.GJXH Single Mode Indoor cable

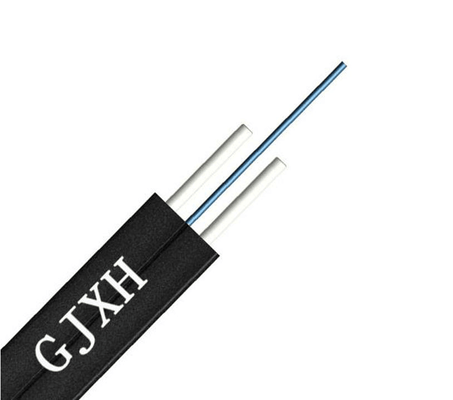

GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home 0
Products Description

Introduction

FTTH indoor cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wire are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

Product Construction

Fiber: 2-12fibers
250µm colored fibers
Strength Member: Steel wire or FRP
Outer Jacket: Flame resistant LSZH jacket

Features

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
·Simple structure, light weight and high practicability.
·Novel flute design, easily strip and splice, simplify the installation and maintenance.
·Low smoke, zero halogen and flame retardant sheath.

Applications

Used in access network or as access cable from outdoor to indoor
in customer premises .
Used as access building cable in premises distribution system,
especially used in indoor or outdoor aerial access cabling.
Details Images
GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home 1
Fiber Type
Attenuation
Overfilled launch Bandwidth
Effective Modal Bandwidth
10GB/S Ethernet link length
Min Bending Radius
Conditions
1310/1550nm
850/1300nm
850/1300nm
850nm
850nm

Unit
dB/km
dB/km
MHZ.km
MHZ.km
m
mm
G652D
0.36/0.22




16
G657A1
0.36/0.22




10
G657A2
0.36/0.22




7.5
50/125

3.0/1.0
≥500/500


30
62.2/125

3.0/1.0
≥200/500


30
OM3

3.0/1.0
≥1500/500
≥2000
≥300
30
OM4

3.0/1.0
≥3500/500
≥4700
≥550
30
B1-OM3

3.0/1.0
≥1500/500
≥2000
≥300
7.5
B1-OM4

3.0/1.0
≥3500/500
≥4700
≥550
7.5
Structure and Technical Specifications
Fiber Count
Cable Diameter
(mm)
Cable Weight
(kg/km)
Tensile Strength
(N/100mm)
Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
1-4
3.0*2.0
9.0
80/200
40/100
1000/2200
500/1000
Product packaging
GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home 2
GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home 3
GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home 4
GJXH 1 Core FTTH Drop Cable Single Mode G657A2 LSZH Jacket Steel Strength Member Indoor Butterfly Fiber Optic Cable for Fiber To The Home 5
