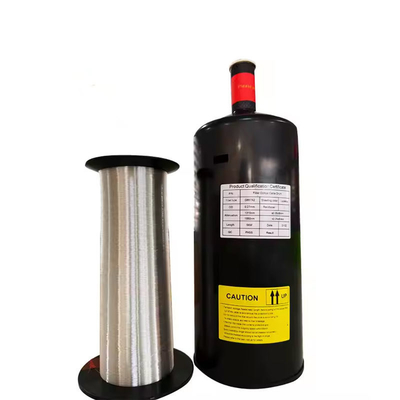

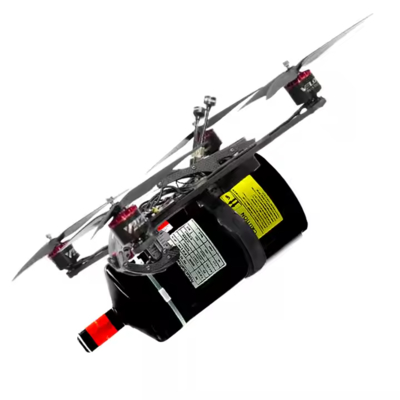

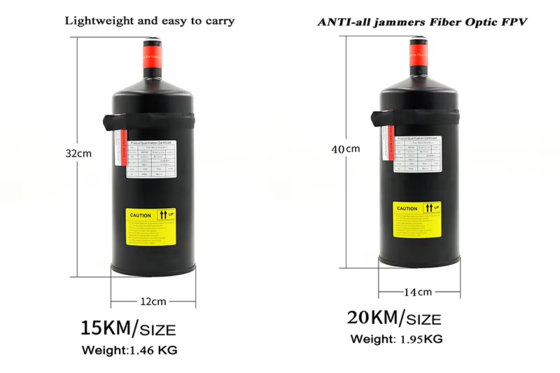

5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV

  • 5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV
  • 5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV
  • 5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV
  • 5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV
  • 5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV
Place of Origin Dongguan CHINA
Brand Name Mingtong
Certification ISO
Minimum Order Quantity 200p
Price 500-2000RNB/KM
Packaging Details carton
Delivery Time It depends on the actual situation.
Payment Terms L/C,T/T
Supply Ability 100p/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number Bare Optical Fiber Type Fiber Optic Cable
Color Customized Colors Connector Type G652D G654D G657A1 G657A2
Size 0.27-0.3 Mm Cable Length 25.2km / 50.4km
Name Indoor Fiber Optic Cable
Highlight

20km Fiber Bucket

,

10km Fiber Bucket

,

5km Fiber Canister
Leave a Message
Product Description

5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV



Product Description

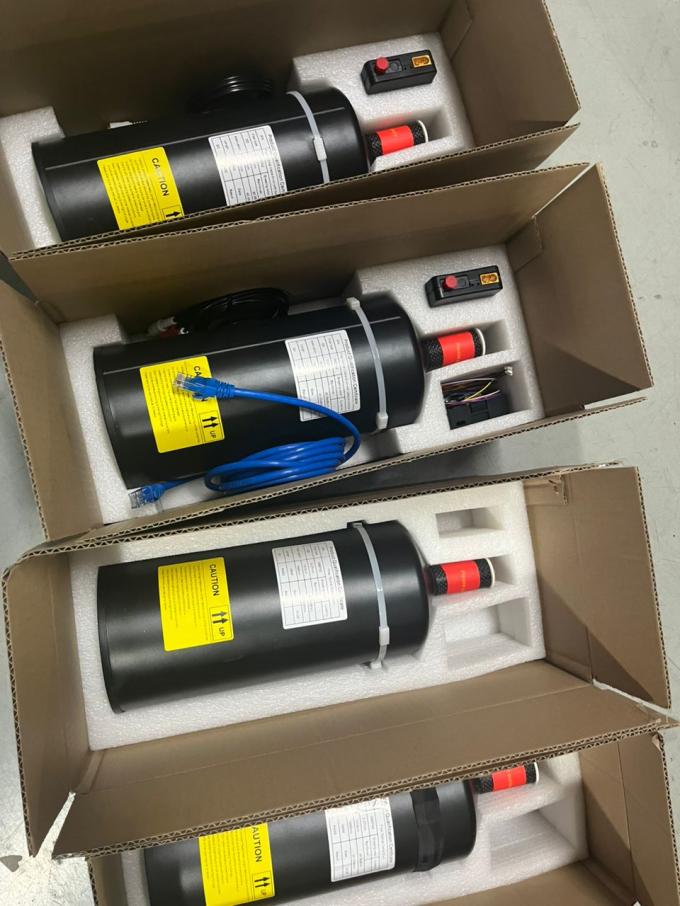

5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV 0
Specification
Optics Specifications

Value(G657a2)




Attenuation(dB/km)
@1310nm
≤0.34db/km
@1383nm(after
hydrogen aging)
≤0.32db/km
@1550nm
≤0.22db/km
@1625nm
≤0.24db/km



Dispersion
@1285nm~1340nm
-3.0~3.0ps/(nm*km)
@1550nm
≤18ps/(nm*km)
@1625nm
≤22ps/(nm*km)
Zero-Dispersion wavelength
1300~1324nm
Zero-Dispersion slope
≤0.092ps/(nm2+km)
Mode field diameter @ 1310nm
9.2±0.4μm
Mode field diameter @ 1550nm
10.4±0.8pm


PMD
Max. value for fiber on the reel
0.2ps/km 1/2
Max.Designed value for link
0.08ps/km 1/2
Cable cutoff wavelength Acc
≤1260nm
Effective group index(Neff)@1310nm
1.4675
Effective group index(Neff)@1550nm
1.4680
Macro-bend loss(φ60mm,100 turns)@1550nm
≤0.05dB
Point discontinuity
≤0.05dB
Cladding diameter
125±1μm
Cladding non-circularity
≤1%
Fiber diameter with coating(uncolored)
245±5μm
Cladding/coating concentricity error
≤0.4μm
Cladding/coating concentricity error
≤12.0μm
Curl
≥4m
Proof test
0.69GPa
Dynamic stress corrosion susceptibility parameter
(typical value)
≥20
Temperature induced attenuation(-60~+85℃)
≤0.5dB/km
Dry heat induced attenuation(85±2°C,30 days)
≤0.5dB/km
Water immersion induced attenuation(23±2°C,30days)
≤0.5dB/km
Damp heat induced attenuation(85±2°℃,RH85%,30days)
≤0.5dB/km
*Standard length:1000m;Other length availabe
*The above is just a suggestion for container loading, please consult our sales department for the specific quantity
Packing & Delivery
5km 10km 20km Fiber Bucket Fiber Drum Fiber Canister For Drone System FPV 1
Loading quantity suggestion
20'GP container
1KM/roll
812KM
2KM/roll
1000KM
40'HQ container
1KM/roll
1900KM
2KM/roll
2000KM
Fast Delivery: 3 Workdays For Sample, 10 Workdays For Bulk Order
