MT Gjasfkv Armoured Fiber Optic Cable 144 Core 72 Core Indoor Armored Fiber Optic Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Armoured Fiber Optic Cable | Type | Indoor Multi-core Armored Cable |
|---|---|---|---|
| Model Number | GJASFKV | Application | Indoor Cabling |
| Product Name | Indoor Multi-core Armored Cable | Fiber Count | 72 144 |
| Tensile Strength | 300/750mm | Allowable Pressure | 200/1000 N / 100m |
| Bending Radius | 20D / 10D Mm | ||
| Highlight | Armoured Fiber Optic Cable 144 Core,Gjasfkv Armoured Fiber Optic Cable,Indoor Armored Fiber Optic Cable |
||
Product Description
MT Gjasfkv Indoor Armoured Fiber Optic Cables 72 144 Core Indoor Multi-Core Armored Cable

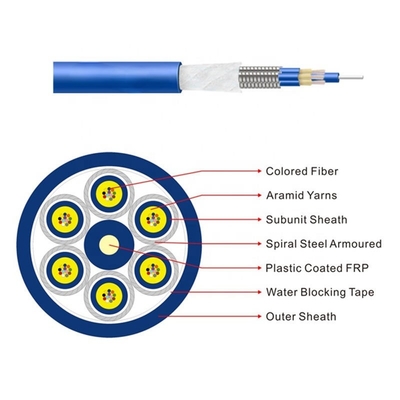

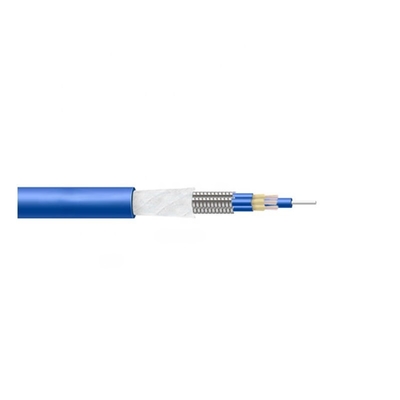

The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini 250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.
Product Features/ PRODUCT
Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.
Flat wire armored to improve the optical cable compression and anti-rat ability.
Has good mechanical and environmental performance.
Flame retardant or non-flame retardant outer jacket to provide good safety protection.
Product Application / PRODUCT
· Various conventional connector products.
Pigtail, jumper.
Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
Optical connection of optical equipment, instruments, etc.
Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
· Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
The backbone of the tail cable, access to the equipment inside the building.
· Small installation space and occasional wiring.
Prouduct Standards/ PRODUCT
· GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.
Optical Characteristics / PRODUCT
| G.652 | G.655 | 50/125 μm | 62.5 / 125 μm | ||
| Attenuation (+ 20 ° C) |
@ 850nm | ≤3.0dB / km | ≤3.0dB / km | ||
| @ 1300nm | ≤1.0dB / km | ≤1.0dB / km | |||
| @ 1310nm | ≤0.36dB / km | - | |||
| @ 1550nm | ≤0.22dB / km | ≤0.23dB / km | |||
| Bandwidth (Class A) |
@ 850 | ≥ 500MHZ · km | ≥ 500MHZ · km | ||
| @ 1300 | ≥1000MHZ · km | ≥600MHZ · km | |||
| Numerical aperture | 0.200 ± 0.015NA | 0.275 ± 0.015 NA | |||
| Cable cut-off wavelength | ≤1260nm | ≤1480nm | |||
Structure parameters/ PRODUCT
| Cable type Cable Type |
Fiber number Fiber Count |
Subunit outer diameter Subunit Diameter mm |
Cable diameter Cable a Diameter mm |
Cable weight Cable Weight Kg / km |
Allowable tension Tensile Strength Long / Short Long / Short Term N |
Allowable pressure Crush Resistance Long / Short Long / Short Term N / 100m |
Bending radius Bending Radius Static / Dynamic the Static / the Dynamic mm |
| GJFJV + SV | 72 | 3.0 | 14.0 | 42 | 300/750 | 200/1000 | 20D / 10D |
| GJFJV + SV | 144 | 3.0 | 18.0 | 65 | 300/750 | 200/1000 | 20D / 10D |
Structure parameters/ PRODUCT
| Transport temperature | -20 ℃ ~ +60 ℃ |
| storage temperature | -20 ℃ ~ +60 ℃ |
| Installation temperature | -5 ℃ ~ +50 ℃ |
| Operating temperature | -20 ℃ ~ +60 ℃ |
