Black PE Outer Sheath Color Self Supporting ADSS 24 Core Fiber Optic Cable Singlemode
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | ADSS | Fiber Count | 2-288 Fibers |
|---|---|---|---|
| Uter Sheath Material | HDPE,MDPE,LDPE | Metallic Strengthen Member | FRP |
| Filler | Filling Compound | Outer Sheath | Black |
| Oem | YES | Operating Temperature | -40°C To + 70°C |
| Highlight | 288 Cores ADSS Fiber Optic Cable, 2 Cores ADSS Fiber Optic Cable, 288 Cores Adss Ofc Cable | Name | ADSS Cable |
| Highlight | 24 Core Fiber Optic Cable Singlemode,Self Supporting ADSS Fiber Optic Cable,ADSS 24 Core Fiber Optic Cable |
||
Product Description

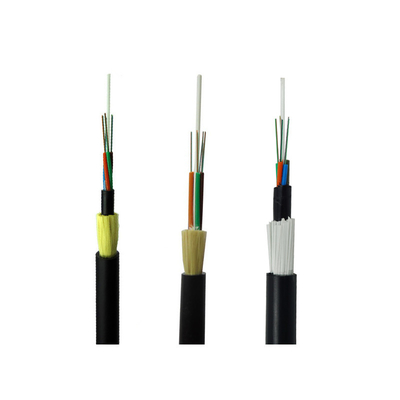

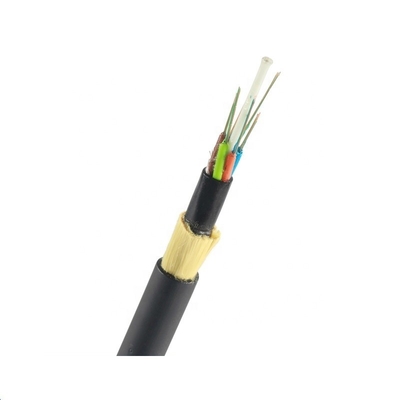

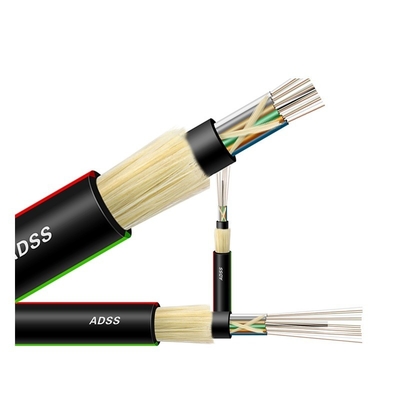

Self Supporting ADSS Optical Fiber Cable Black Outer Sheath Color Easy Installation
This Single Mode Cable 2/4/6/8/12/24/48/96 Core ADSS Fiber Optic Cable are suitable for outdoor aerieal installation.Light armored structure with Amaid Yarn messager makes Single Mode Cable 2/4/6/8/12/24/48/96 Core ADSS Fiber Optic Cable itself gravity.
This specification covers the requirements of the All Dielectric Self-Supporting Optical Fiber Cable (ADSS) to be supplied to customer for use outside installation.
he optical fiber cable shall comply with the requirements of this specification and generally meet or better latest standards:
ITU-T G.650: Definitions and test methods for linear, deterministic attributes of single-mode fiber and cable
ITU-T G.652.D: Characteristics of a single-mode optical fiber and cable
IEC 60793-2-50 B1.3: Sectional specification for class B single mode fibers
IEEE Std 1222 TM, IEEE Standard for All-Dielectric Self-Supporting Fiber Optic Cable
Characteristics
1.All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure
2.Large number of fiber cores, light weight, can be laying with the power line, saving resources
3.Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots
4.Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.
5.Double jacket, PE/AT outer sheath
Specifications
| Cable Type | ADSS |
| Fiber Type | G652D |
| Application | Long distance telecom, LAN in high voltage area or access to telecom network; |
| Recommended installation methods | Power transmission system, much thunder areas and high electro-magnetic inerference |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber | |||
| Optical Characteristics | |||
| Mode field diameter (MFD) |
1310nm 1550nm |
9.2±0.4 10.4±0.8 |
µm µm |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Attenuation coefficient |
1310nm 1383nm 1550nm |
＜0.35 ＜0.35 ＜0.22 |
dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | ≤0.05 | dB | |
| Dispersion coefficient |
1288~1339nm 1271~1360nm 1550nm |
≤3.5 ≤5.3 ≤18 |
Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 | nm | |
| Max zero dispersion slope | ≤0.093 | Ps/(nm2.km) | |
| Group index of refraction (typical value) |
1310nm 1550nm |
1.466 1.467 |
|
| Geometric characteristic | |||
| Cladding diameter | 125.0±1.0 | µm | |
| Core/cladding concentricity error | ≤0.8 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10 | µm | |
| Cladding/coating concentricity error | ≤12.0 | µm | |
| Coating non-circularity | ≤8 | % | |
| Diameter of colored coating | 250.0±15 | µm | |
| Mechanical characteristic | |||
| Curling (radius) | ≥4 | m | |
| Proof stress | ＞0.69 | Gpa | |
| Coating strip force |
Average value Peak value |
1.0-5.0 1.3-8.9 |
N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | ≥20 | ||
Standard Color Identification of Fiber
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Design
| Items | Descriptions | ||
| Optical fiber(G.652.D) | 12F | 24F | |
| Loose tube | Material | PBT (Polybutylene Terephthalate) | |
| Fibers per tube | 4 | 4 | |
| Numbers | 3 | 6 | |
| Filler rod | Numbers | 3 | 0 |
| Central strength member | Material | FRP (Fiber glass reinforced plastic) | |
| Water blocking Material | Water blocking yarn | ||
| Additional strength member | Aramid yarns | ||
| Outer sheath | Material | Black HDPE | |
| Thickness | Nominal: 1.6 mm | ||
| Cable nominal diameter(±0.3mm) | 10.0 | ||
| Cable approx. weight (kg/km) | 78 | ||
| Rated Tension Stress (RTS) | 4.5KN | ||
| Maximum working tension (40%RTS) | 1.8KN | ||
| Everyday stress (15-25%RTS) | 0.675-1.125KN | ||
| Allowable maximum span | 100m | ||
| Crush | Short time | 2200N/100mm | |
| Applicable temperature range | Operation | -40℃~+70℃ | |
| Installation | -10℃~+50℃ | ||
| Storage & shipping | -40℃~+60℃ | ||
| Bending Radius | Installation | 20 times of cable diameter | |
| Operation | 10 times of cable diameter | ||
Cable Performance
| Item | Testing | Test Method | Test Result |
| 1 |
Tensile strength IEC 60794-1-E1 |
Tension load:1500N Time: 1min Cable length: ≥50m |
Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 2 |
Impact IEC 60794-1-E4 |
Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot |
Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 3 |
Repeated Bending IEC 60794-1-E6 |
Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s |
Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 4 |
Torsion IEC 60794-1-E7 |
Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times |
Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 5 |
Water Penetration IEC 60794-1-F5B |
Water height: 1m Cable length: 3m Keeping time: 24hours |
No water leaked from the opposite end of cable |
| 6 |
Temperature IEC 60794-1-F1 |
Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times |
Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 7 |
Compound flow IEC 60794-1-E14 |
Sample length: 30cm Keeping time: 24hours |
No compound flow |
Cable Sheath Marking
Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer’s requirements.

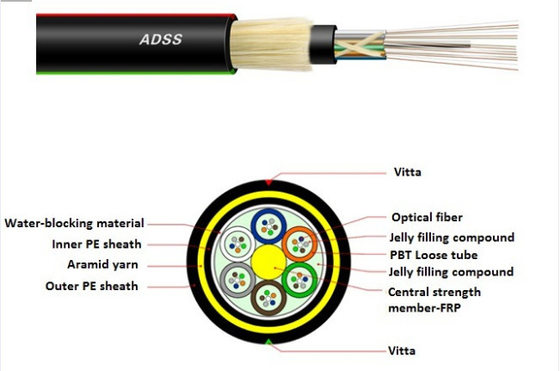

Cable Structure
