12 core single jacketFactory Price Outdoor Self-supporting Aerial Fibra Optica ADSS Span 100m ADSS Fiber Optic Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | ADSS | Material | PE Sheath+Aramid Yain+FRP |
|---|---|---|---|
| Structure | Stranded Loose Tube | Jacket Color | Black Or As Requested |
| Strength Member | FRP,Kevlar Aramid Yarn | Highlight | 144 Fibers Adss Fiber Optic Cable, 144 Fibers Aerial Fiber Optic Cable, ADSS 144 Fiber Optic Cable |
| Name | ADSS Cable | ||
| Highlight | 100m adss fiber optic cable,aerial adss fiber optic cable,aerial fiber optic adss cable |
||
Product Description
Product Description
12Fibers ADSS All-dielectric Self Support Outdoor Aerial Fiber Optic Cable
1. Description
|
Temperature Range
|
|
|
Transport/storage temp
|
-30℃～+65℃
|
|
Installation temp
|
-20℃～+50℃
|
|
Operation temp
|
-30℃～+65℃
|
|
Structural Characteristics
|
|
|
Fiber count
|
2～144
|
|
Loose tube
|
Colored fiber in PBT loose tube,filled with fiber gel
|
|
Central strength member
|
Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
|
|
Waterproof layer
|
Cable core filled with cable gel or water blocking tape, water blocking yarns
|
|
High-strength aramid yarn
|
Offers very high tensile strength, small diameter and light weight to fit different climate conditions and laying spans
|
|
Sheath
|
Anti-tracking(AT) material or Polyethylene(PE)
|
2. Features
Can be installed without shutting off the power;
Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;
Large span lengths and the largest span is over 1000m;
Good performance of tensile strength and temperature;
The design life span is 30 years.
3.Specifications
Mechanical & Environmental Characteristics
| Designation | Diameter (mm) | RTS(N) | MAT(N) | EDS(N) | Kg/km |
| 2~24 core | |||||
| ADSS-AT(PE)xx -4KN | 12.2 | 9698 | 3879 | 2425 | 121 |
| ADSS-AT(PE)xx -6KN | 12.5 | 14108 | 5643 | 3527 | 126 |
| ADSS-AT(PE)xx -9KN | 12.9 | 22928 | 9171 | 5732 | 135 |
| ADSS-AT(PE)xx -12KN | 13.3 | 30645 | 12258 | 7661 | 143 |
| ADSS-AT(PE)xx -15KN | 13.6 | 37260 | 14904 | 9315 | 149 |
| ADSS-AT(PE)xx -18KN | 13.9 | 44978 | 17996 | 11245 | 157 |
| ADSS-AT(PE)xx -21KN | 14.3 | 52695 | 21078 | 13174 | 164 |
| ADSS-AT(PE)xx -24KN | 14.6 | 60413 | 24165 | 15103 | 172 |
| ADSS-AT(PE)xx -26KN | 14.8 | 65925 | 26370 | 16481 | 177 |
| 26~36 core | |||||
| ADSS-AT(PE)xx -4KN | 12.8 | 9698 | 3879 | 2425 | 133 |
| ADSS-AT(PE)xx -6KN | 13.0 | 14108 | 5643 | 3527 | 138 |
| ADSS-AT(PE)xx -9KN | 13.4 | 22928 | 9171 | 5732 | 146 |
| ADSS-AT(PE)xx -12KN | 13.8 | 30645 | 12258 | 7661 | 154 |
| ADSS-AT(PE)xx -15KN | 14.1 | 37260 | 14904 | 9315 | 161 |
| ADSS-AT(PE)xx -18KN | 14.4 | 44978 | 17991 | 11245 | 168 |
| ADSS-AT(PE)xx -21KN | 14.7 | 52695 | 21078 | 13174 | 175 |
| ADSS-AT(PE)xx -24KN | 15.1 | 60413 | 24165 | 15103 | 183 |
| ADSS-AT(PE)xx -26KN | 15.3 | 65925 | 26370 | 16481 | 188 |
Only a part of ADSS cables are list in the table.We can design the different characteristic base on the environment condition

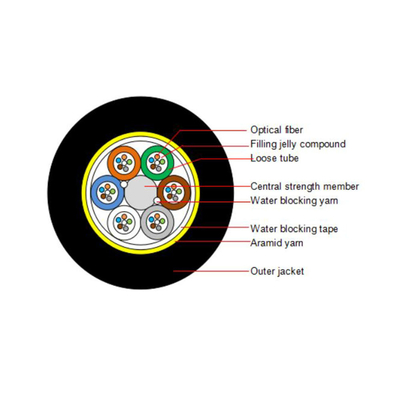

4.Structure and Product Pictures
5.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
