Outdoor Aerial Fiber Optic Cable Loose Tube 2 Core 12 Core 24 Core Fiber Optic Cable ADSS
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise | Type | ADSS |
|---|---|---|---|
| Fiber Number | 2-288 | Operating Temperature | -20℃~+85℃ |
| Central Strengthen Member | FRP | Sheath | PE |
| Life Expectancy | Over 30 Years | Number Of Conductor | ≥ 10 |
| Storage | -40℃ To + 70℃ | Custom | Customized Available |
| Water Blocking Material | Dry Water Blocking | Return Loss | ≥50dB |
| Core | 24 Core | Number Of Conductors | ≥ 10 |
| Package | Plywood Drum | Span | 100/200/300/400m/500m |
| Jacket | Single PE Jacket | Highlight | 12 Core ADSS Fiber Optic Cable, 24 Core ADSS Fiber Optic Cable, 2 Core ADSS Fiber Optic Cable |
| Name | ADSS Cable | ||
| Highlight | Aerial Fiber Optic Cable Loose Tube,12 Core Fiber Optic Cable ADSS,24 Core Fiber Optic Cable ADSS |
||
Product Description

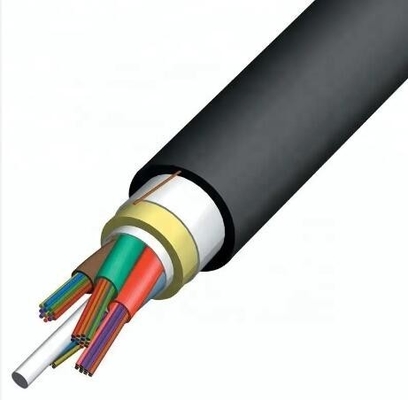

ADSS Outdoor Aerial Light Cable One Loose Tube 2core 12 Core 24 Core Fiber Optic Cable
Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
