Uni-Tube Black Double Sheath Self-Supporting 96 Core ADSS Cable Ofc Cable Flat Structure

Self Supporting ADSS Optical Fiber Cable Black Outer Sheath Color Easy Installation

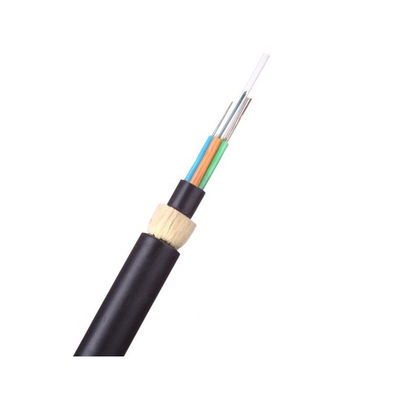

ADSS optical cable adopts loose layer stranded structure. 250 µ M optical fiber is sleeved into a loose tube made of high modulus material, which is filled with waterproof compound. The loose tube (and filling rope) is twisted around the non-metallic central reinforcing core (FRP) to form a compact cable core, and the gap of the cable core is filled with water blocking ointment. The cable core is extruded with polyethylene (PE) inner sheath, then twisted with aramid for reinforcement, and finally extruded with polyethylene (PE) outer sheath or at outer sheath

Features

1.Water-swellable yarn provides water protection again (dry core structure)

2.Non-metal construction

3.Glass fiber reinforced polymer central strength members and aramid yarn peripheral strength members provide excellent strength

4.Flexible buffer tube provides easy-to-handle terminal housing

5.Single-layer SZ stranding limits the stress of the fiber tube

6.Fiber-friendly thixotropic gel tube to ensure fiber protection

7.TIA 598 standard color code

8.6 or 12 fiber tube structure

Applications

1.Adopted to Outdoor distribution

2.Long distance and local area network communication

3.Low-voltage transmission and distribution system

4.Railways and Telecommunications pole route

General Specification
