48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package | Plywood Reel/customized | Fiber Options | Itu G652D, G657A, Om1, Om2, Om3, Om4 |
|---|---|---|---|
| Strengthening Structure | FRP Strength Member | Fiber Count | 12 |
| Number Of Fiber | 2-288 | Cable Diameter | 7-17mm |
| Operating Temperature | -20 To +60 | Cable Use | Aerial |
| Number Of Conductor | ≥ 10 | Cable Color | Black |
| Tensile Strength | 1000N | Material Shape | Round Wire |
| Strength Member | Armid Yarn | Installation Methods | Aerial &Duct |
| Flame Retardant | Yes | Highlight | 48 Core Fiber Optic Cable, Armored Fiber Optic Cable, 48 Core ADSS Fiber Optic Cable |
| Name | ADSS Cable | ||
| Highlight | 48 core adss fiber optic cable single mode,armored fiber optic cable single mode,armored 48 core adss fiber optic cable |
||
Product Description

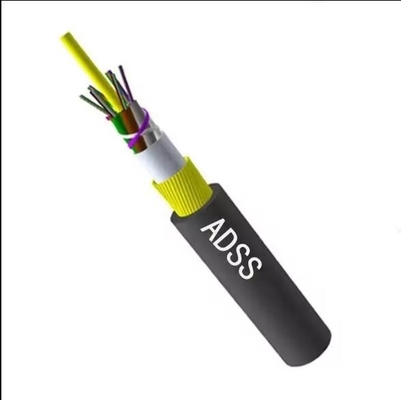

48 Core Adss Fiber Optic Cable Single Mode Fiber Optic Cable Armored China Fiber Optics Cable

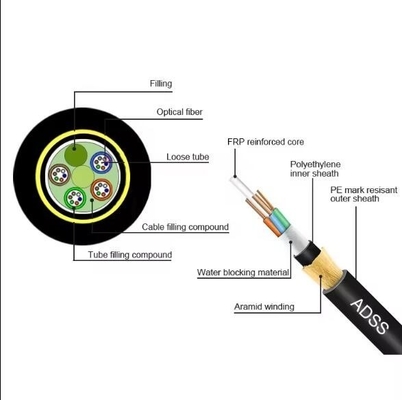

Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
