Special Aramid Yarn 24 Core ADSS All Dielectric Fiber Optic Cable Anti Tracking
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No | ADSS | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| TypeLoose Tube Material& Filling Material | PBT&Jerry | Color Of Loose Tube | Blue, Orange,Green , Brown,Red Etc |
| Core Moisture Protection Methodology | Water Blocking Tape Or Filling Compound | Strength Material | High Flexible Amaid Yarn |
| Cable Color | Black | Highlight | 24 Core All Dielectric Fiber Optic Cable, Anti Tracking All Dielectric Fiber Optic Cable, 24 Core Self Supporting Fiber Optic Cable |
| Name | ADSS Cable | ||
| Highlight | 24 core adss cable,24 core adss ofc cable,g652d adss cable |
||
Product Description
Product Description
Special Anti-tracking 24 Core ADSS Fiber Optic Cable
ADSS cables(Full Dielectric Self Support) are ideal for installation in power distribution and transmission environments. ADSS does not require support or messenger lines, so it can be completed in one installation, making ADSS an economical and simple way to realize fiber optic networks. It is the first choice when producing your own accessory hardware and supplying formed wire accessories.
Properties
1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applications
1.Adopted to Outdoor distribution
2.Network in high electromagnetic interfering places
3.Long distance and local area network communication
4.Low-voltage transmission and distribution system
Technical Date
(for 24 core fiber, 800m span)
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |

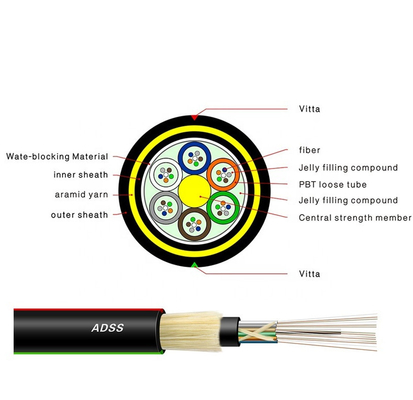

Product Structure
