2-144 Core ADSS All Dielectric Self Supporting Cable G657A2 Customized
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ADSS All Dielectric Self Supporting Cable | Type | ADSS |
|---|---|---|---|
| Fiber Type | G657A2 | Fiber Count | 2-288 |
| Strength Member | Aramid Yarn | Structure | Multi Core |
| Jacket Material | PE | Application For | Aerial |
| Operating Temperature | -40 ~ +60 C | Custom | Customized Available |
| Packing | 2-4km/wooden Drum | Highlight | Adss Cable, Dielectric Fiber Optic Cable |
| Highlight | 144 Core All Dielectric Self Supporting Cable,ADSS All Dielectric Self Supporting Cable,Fiber Optic ADSS Cable G657A2 |
||
Product Description
Outdoor Fiber Optic Cable
ADSS 2-144 Core All-Dielectric Self-Supporting Optical Fiber Cable Manufacturers
Description

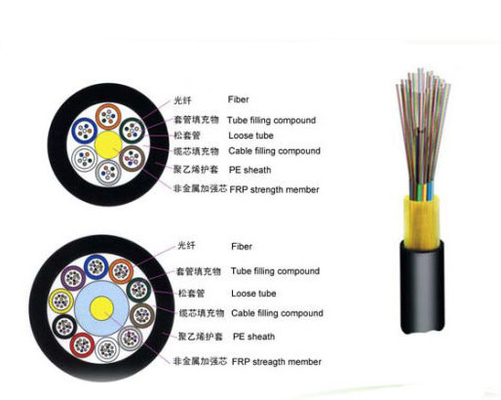

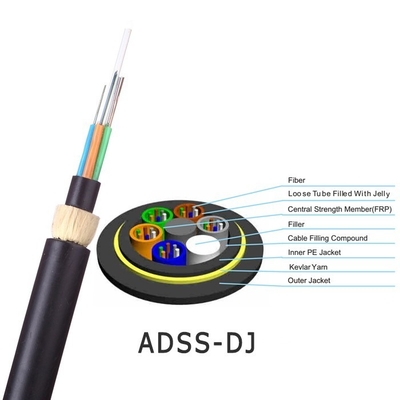

1. ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2. The tubes are filled with a water-resistant filling compound.
3. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
4. After the cable core is filled with filling compound.
5. it is covered with thin PE (polyethylene) inner sheath.
Characteriatic

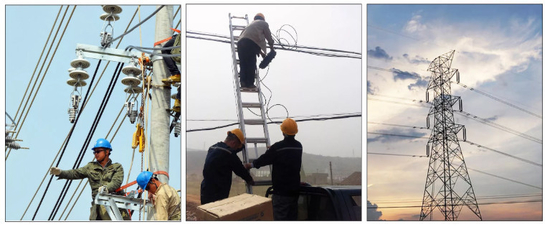

1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4. Large span lengths and the largest span is over 1000m
Parameter
| Cable Type | Fiber Count | Tubes | Fillers |
Cable Diameter mm |
Cable Weight kg/km | Max working tension kN | Strength member CSA mm2 | Modulus of elasticity kN/mm2 |
| ADSS | 2 | 1 | 4 | 12.5 | 136 | 1.5 | 4.6 | 7.6 |
| ADSS | 4 | 2 | 3 | 13.0 | 142 | 2.25 | 7.6 | 8.3 |
| ADSS | 8 | 3 | 2 | 13.3 | 148 | 3.0 | 10.35 | 9.45 |
| ADSS | 10 | 4 | 1 | 13.6 | 156 | 3.6 | 13.8 | 10.8 |
| ADSS | 12 | 5 | 0 | 13.8 | 159 | 4.5 | 14.3 | 11.8 |
| ADSS | 14 | 6 | 0 | 14.5 | 177 | 5.4 | 18.4 | 13.6 |
| ADSS | 16 | 4 | 1 | 14.9 | 185 | 6.75 | 22.0 | 16.4 |
| ADSS | 20 | 5 | 0 | 15.1 | 193 | 7.95 | 26.4 | 18.0 |
| ADSS | 24 | 6 | 0 | 15.5 | 201 | 9.0 | 32.2 | 19.1 |
| ADSS | 28 | 7 | 1 | 15.6 | 208 | 10.5 | 33.0 | 19.6 |
| ADSS | 32 | 8 | 0 | 16.3 | 226 | 12.75 | 40.0 | 21.0 |
| ADSS | 36 | 9 | 1 | 16.8 | 242 | 15.45 | 48.0 | 24.0 |
| ADSS | 42 | 10 | 0 | 17.2 | 253 | 16.2 | 51.0 | 25.1 |
| ADSS | 48 | 11 | 1 | 17.9 | 266 | 18.0 | 58.8 | 25.1 |
Optical Characteristic
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation(+20ºC) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
