Self-Supporting Aerial Cable Composite Overhead Ground Wire The Manufaturer With The Floor Price And Good Quality
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | OPGW |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Replacemnet Of Aerial Ground Wire | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Type | Professional Manufactures | Cable Diameter | 9-18.2mm |
| Package | Iron-wooden Reel | Highlight | Opgw Fiber Cable, Waterproof Fiber Optic Cable |
| Jacket Material | Aluminium-coated Steel/ACS | Name | OPGW Cable |
| Highlight | g652d opgw ground wire,steel opgw ground wire,g652d overhead ground wire |
||
Product Description
Product Description
OPGW cable is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. Its working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.
Applications
1.lighting protection and conduct the short circuit current.
2.Adapt to replace the aged ground wire and new structure of high voltage ground wire.
3.For new or existing Ground cable.
Technical Data
| Structure Details | Named | No. | Diameter | ||
| Center | 20%AS wire | 1 | 2.70 | mm | |
| Layer 1 | 20%AS wire | 4 | 2.70 | mm | |
| SUS-Tube | 2 | 2.70 | mm | ||
| Layer 2 | 20%AS wire | 10 | 2.70 | mm | |
| According to IEEE std 1138,IEC 60794-4 standards | |||||
| Fiber No. & Type | 48 | G652D | |||
| Standard Diameter | 13.50 | mm | |||
| Supporting Cross Section | 97.30 | mm2 | |||
| Section of AS wire | 97.30 | mm2 | |||
| Approximate mass | 687.0 | kg/km | |||
| Rated Tensile Strength | 117.0 | kN | |||
| Maximum Allowable Tension(40%RTS) | 46.8 | N/mm2 | |||
| Everyday Stress(25%RTS) | 29.3 | N/mm2 | |||
| Strain Margin Stress(70%RTS) | 81.9 | N/mm2 | |||
| Modulus of Elasticity | 162.0 | GPa | |||
| Thermal Elongation Coefficient | 13.0 | ×10-6/ºC | |||
| Calculated D.C. Resistance at 20ºC | 0.878 | Ω/km | |||
| Short-Circuit Current Capacity(40~200ºC, 0.25s) | 45.3 | kA2·s | |||
| Ratio between Pull and Weight | 17.40 | km | |||
| Temperature | Installation | -10ºC~+50 | ºC | ||
| Range: | Transportation and Operation | -40ºC~+80 | ºC | ||

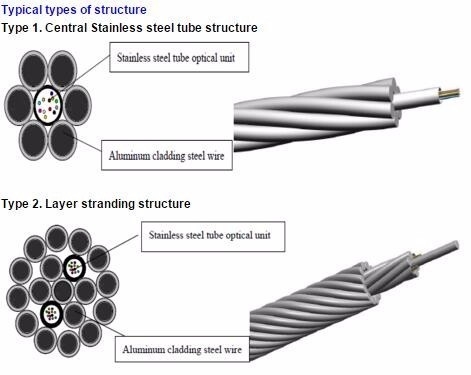

Cross Section
