48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 2-48 Fibers | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Package | Iron-wooden Reel | Layer | AS, AA |
| Cable Diameter | 40-80mm | Optical Unit | SST,PBT |
| Applications | Telecommunication, Aerial | Operating Temperature | -40°C To + 70°C |
| Highlight | Opgw Wire, Fiber Optic Opgw Cable | Name | OPGW Cable |
| Highlight | 48 Core Aerial Central Optical Unit,Overhead Ground Wire OPGW Fiber Cable |
||
Product Description
2-48 Core Optical Fiber Composite Overhead Ground Wire OPGW
Description
The central stainless steel tube cable and the OPGW are widely used for electric and communication needs. OPGW has multiple functions and can be customized for different structures.
Features
Fibers are protected and lightweight with excellent mechanical and electrical properties. They withstand high stress and match common ground wires.
Speicfications
| Classification | Material | Value | |
|
Construction |
Optical Fibre | G652D/G655 etc. | 2 - 48 |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | |
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
| Max. Diameter | 18mm | ||
| Max. Cross Section | 200mm2 | ||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
| Max. Tensile Strength (RTS ) (kN) | 280 | ||
| Max. Crush Strength(N/100mm) | 2200 | ||
| Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
| Min. Bending Radius (Dynamic) | 20D | ||
| Min. Bending Radius (Static) | 15D | ||
| Environment Performance | Installation (℃) | -10 to +50 | |
| Transportation and Operation (℃) | -40 to +65 | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

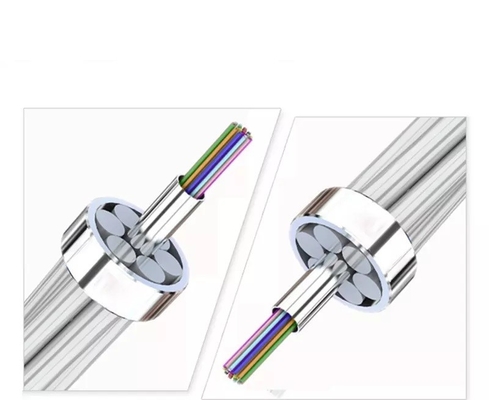

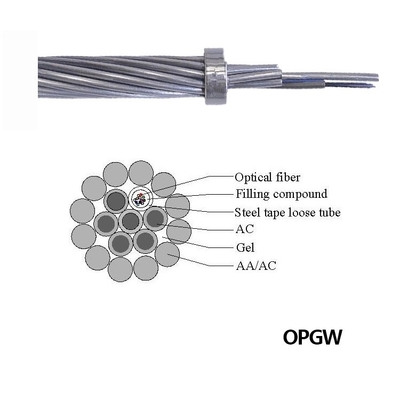

Structure and Product Pictures

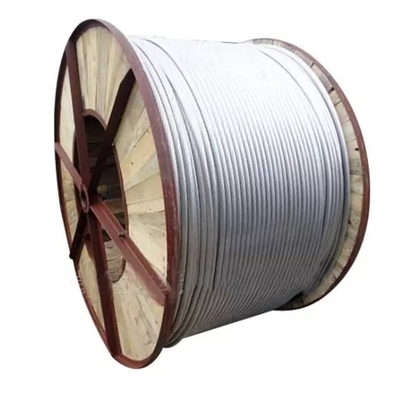

Packing & Shipping
Cable is supplied on separate drums in specified lengths with plastic protection caps, and a test report for each fiber.
