Pigtail SC UPC Fiber Optic Patch Cord Low Insertion Loss Good In Exchange
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 200 |
| Price | 5-200RNB/P |
| Packaging Details | cardboard box |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 2000 copies/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Polish | UPC,APC | Fiber Type | SM/MM |
|---|---|---|---|
| Connector | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO | Cord Type | Simplex ,Duplex |
| Cable Jacket | PVC,LSZH,OFNR,OFNP | Highlight | Pigtail Fiber Optic Cable, Fiber Optic Components |
| Highlight | Fiber Optic Pigtail SC UPC,SC UPC Fiber Optic Patch Cord,SC UPC Pigtail Fiber Optic Cable |
||
Product Description

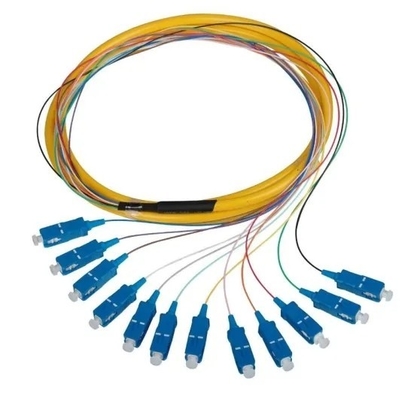

SC/UPC Fiber Optic Pigtail
SC fiber optic Pigtail is a fiber optic cable capped at one with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.
SC fiber optic cable is available in both single mode and multimode versions.
the SC connector has a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end.
These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
Features:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Excellent mechanical endurance
- Good in repeatability
- Good in exchange
Application:
- Telecommunications
- CATV, LAN, MAN, WAN, Test &Measurement
- Military industry
- Medical
Parameter:
| Parameter | Unit | Standard & Requirement | |||||
| PC(SM) | UPC(SM) | APC(SM) | PC(MM) | ||||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥35 | ||
| Mechanical Endurance (500T) | dB | ≤0.2 | |||||
| Exchangeability | dB | ≤0.2 | |||||
| Durability | Time | ＞500 | |||||
| Vibration | dB | ≤0.2 | |||||
| Operating Temperature | ℃ | ﹣40 ～﹢75 | |||||
| Storage Temperature | ℃ | ﹣45 ～﹢85 | |||||
| Cable Diameter | mm | Ф2.0mm± 2% | |||||
FIBER CHARACTERISTICS:
| ITEM | CONSTRUCTION | ||||
| FIBER TYPE | Single mode: G652, Multimode: G651 | ||||
| MODE | FIELD | DIAMETER | |||
| @1310NM | 9.0±0.5μm | ||||
| CLADDING DIAMETER | 125±1μm | ||||
| CORE | CONCENTRICITY | 0.6μm | |||
| ERROR | |||||
| ≦ | |||||
| CLADDING | 1.0% | ||||
| NON-CIRCULARITY | |||||
| ≦ | |||||
| PRIMARY | COATING | ||||
| DIAMETER | 250±15μm | ||||
| COATING-CLADDING | |||||
| CONCENTRICITY ERROR | ≦12.5μm | ||||
| FIBER CURL RADIUS | 4m | ||||
| ≧ | |||||
| LSZH or better (OFNR-rated). The non-circular < 2%. Yellow color. printed cables | |||||
| Casing | information, type, length, | ||||
| The bend R | 3 cm | ||||
| Installation: ≥ 200 N | |||||
| Greatest tension | Operating: ≥ 200 N | ||||
| The force mashed | 550 N/cm | ||||
