8 12 Fiber LC OM3 OM4 Multimode Fiber Optic Patch Cord for High Density Cabling in Data Centers
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | OEM/ODM |
| Certification | ISO 9001, RoHS, CE |
| Model Number | LC-OM3-OM4-8-12 |
| Minimum Order Quantity | 100 Pieces |
| Price | USD 1.20-3.50 / Piece |
| Packaging Details | 1 pc/polybag, anti-static bag, export carton |
| Delivery Time | 7-15 days after deposit |
| Payment Terms | T/T,L/C,Western Union,PayPal |
| Supply Ability | 50000 Pieces per Month |
Product Details
| Connector Type | LC / LC | Fiber Mode | OM3 / OM4 Multimode |
|---|---|---|---|
| Fiber Count | 8 Fibers / 12 Fibers | Wavelength | 850 Nm / 1300 Nm |
| Insertion Loss | <= 0.3 DB | Return Loss | >= 20 DB |
| Ferrule Material | Ceramic (Zirconia) | Cable Jacket | LSZH / PVC |
| Cable Diameter | 3.0 Mm / 2.0 Mm / 0.9 Mm | Length | 1m/2m/3m/5m/Customized |
| Operating Temperature | -40C To +75C | ||
| Highlight | OM3 OM4 LC Patch Cord,8 12 Fiber Multimode Cable,Data Center Fiber Optic Pigtail |
||
Product Description
8 12 Fiber LC OM3 OM4 Multimode Fiber Optic Patch Cord
Our LC OM3/OM4 multimode fiber optic patch cords are engineered for high-density data center and enterprise network cabling. Available in 8-fiber and 12-fiber configurations, they deliver low insertion loss and stable optical performance for 10G/40G/100G transmission over short to medium distances.
Key Features
- LC connector with precision ceramic ferrule, UPC polish (APC optional)
- OM3 (Aqua) and OM4 (Violet) multimode fiber supporting 10G/40G/100G links

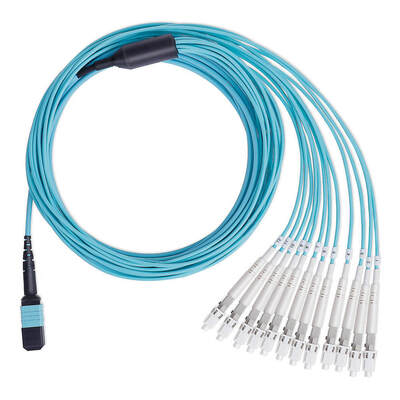

- 8-fiber and 12-fiber options for high-density patching and MPO/MTP breakout
- Insertion loss ≤ 0.3 dB and return loss ≥ 20 dB for reliable signal integrity
- LSZH or PVC jacket, flame retardant and low smoke
- 100% factory tested with individual test report available
Specifications
| Connector Type | LC / LC (LC-UPC) |
| Fiber Mode | OM3 / OM4 Multimode |
| Fiber Count | 8 Fibers / 12 Fibers |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 20 dB |
| Ferrule Material | Ceramic (Zirconia) |
| Cable Jacket | LSZH / PVC |
| Cable Diameter | 3.0 mm / 2.0 mm / 0.9 mm |
| Length | 1 m / 2 m / 3 m / 5 m / Customized |
| Operating Temperature | -40°C to +75°C |
Applications
- Data center high-density cabling and cross-connect
- LAN, SAN and storage area networks
- FTTH, telecom rooms and equipment interconnection
- 40G/100G parallel optics (8F/12F) connections
Customization & OEM
We support OEM/ODM services: custom lengths, connector polish types (UPC/APC), jacket materials, colors and printed labels. Bulk pricing and free samples for qualified projects are available on request. Contact us with your specification to get a fast quotation.
