Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 200 |
| Price | 5-200RNB/P |
| Packaging Details | cardboard box |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 2000 copies/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Polish | UPC,APC | Fiber Type | SM/MM |
|---|---|---|---|
| Connector | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO | Cord Type | Simplex ,Duplex |
| Cable Jacket | PVC,LSZH,OFNR,OFNP | Highlight | Pigtail Fiber Optic Cable, Fiber Optic Components |
| Highlight | Polish Pigtail Fiber Optic Cable,UPC APC Pigtail Fiber Optic Cable,UPC APC Fiber Optic Cable Pigtail |
||
Product Description
Description
An optical fiber pigtail is a length of fiber with a connector at one end, used for connecting the beam path. It can have various types of connectors and three types of polished fiber end-faces (PC, UPC, and APC). Our advanced techniques and equipment ensure high-quality mass production
This product has the following features:
Low insertion loss
High return loss
Good repeatability
Good exchangeability
High temperature stability
Applications include optical fiber communication systems
a.Optic-fiber data communications are involved in various applications.
b. Various applications can utilize optic-fiber data communications.
c. Different scenarios can benefit from optic-fiber access networks.
d. Multiple applications exist for LAN optic-fiber sensors.
Parameters
| Mode | Single mode | Multi-mode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Apex Offset | 0μm ~ 50μm | ||
| Radius of Curvature | 7mm ~ 25mm | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode:9/125-G652D 9/125-G657 |
| Multi-mode: 50/125-OM2 62.5/125-OM1 50/125-OM3 |
|
| Fiber | Corning,China Fiber,other |
| Connector | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm,1.8mm 3.0mm |
| Cable jacket | PVC,LSZH,OFNR,OFNP |
| length(M) | 0.5m,1m,3M,5m,10m,20m,200m or other |

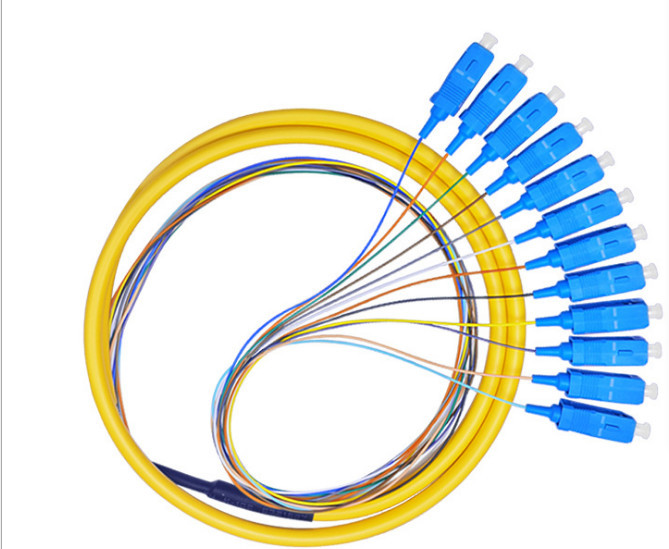

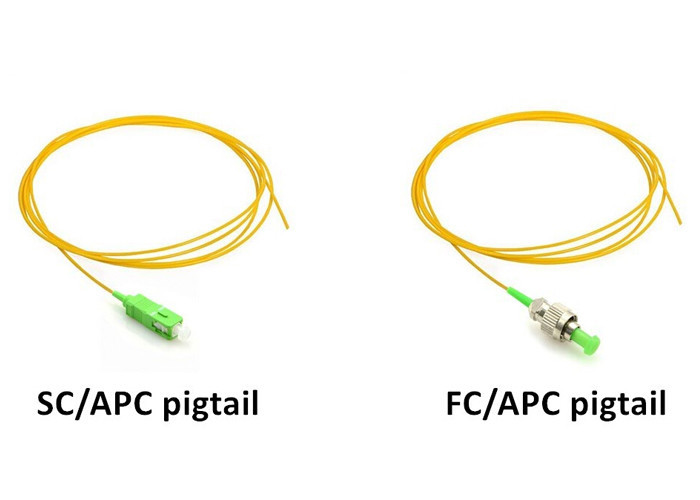

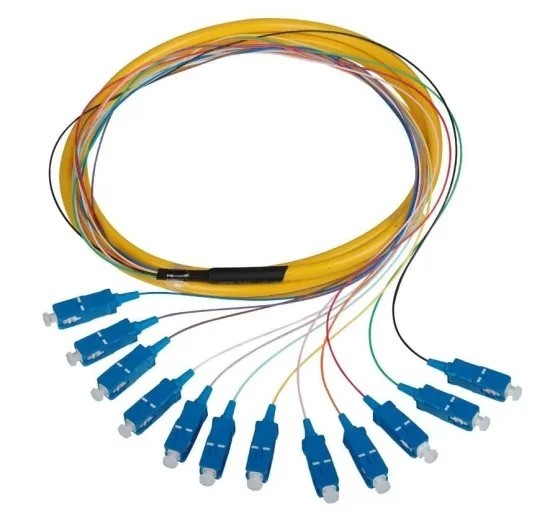

Appearance
