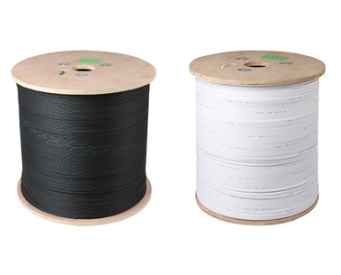

GJYXFCH Outdoor 1 2 Core Fiber Optic Drop Cable G652D G657A1 G657A2 LSZH
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GJYXCH |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |

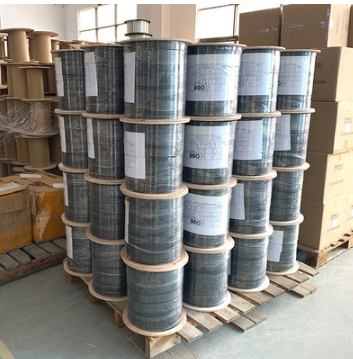

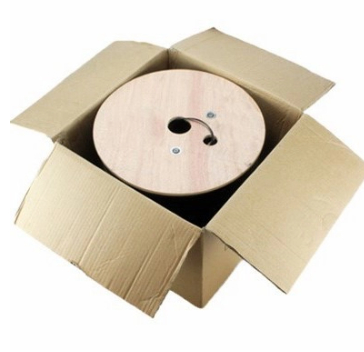

| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Indoor FTTH-drop Cable | Fiber Type | Single-Mode G657A1/G652D |
|---|---|---|---|
| Number Of Fiber | 2 | Construction | Steel Messenger |
| Outer Jacket Materail | LSZH | Tensile Strength | 100/200N |
| Highlight | LSZH Fiber Optic Drop Cable, FTTH Fiber Optic Drop Cable, Outdoor FTTH Drop Cable | Self-Supporting Strength Member | 3steel Wire |
| Color | Black Or Grey | Name | Butterfly Drop Cable |
| Highlight | 2 core fiber optic drop cable g652d,gjyxfch 2 core fiber drop cable,gjyxfch 2 core fiber optic drop cable |
||
Product Description
Product Description
Single Mode FTTH Drop Cable G657A1 G652D Zero Halogen Flame Retardant Sheath
GJYXFCH outdoor 1 core and 2 core fibra optica G652D G657A1 G657A2 LSZH fiber optic drop cable
The optical fiber unit is positioned in the centre.
Two parallel FRP or steel wire are placed at the two sides.
steel wire or FRP as the additional strength member is also applied.
Then the cable is completed with a black or color LSZH sheath.
Features
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel Steel wire or frp strength members ensure good performance of crush resistance to protect the fiber.
3.Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
4.Simple structure, light weight and high practicability.
5.Novel flute design, easily strip and splice, simplify the installation and maintenance.
6.Low smoke, zero halogen and flame retardant sheath.
2.Two parallel Steel wire or frp strength members ensure good performance of crush resistance to protect the fiber.
3.Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
4.Simple structure, light weight and high practicability.
5.Novel flute design, easily strip and splice, simplify the installation and maintenance.
6.Low smoke, zero halogen and flame retardant sheath.
Application
FTTH FTTB FTTX Network
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 4 | |
| Diameter | mm | 5.0*2.0 | |
| Weight | Kg/km | Approx.21 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| O.D of steel wire | mm | 1.0±0.05mm | |
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
