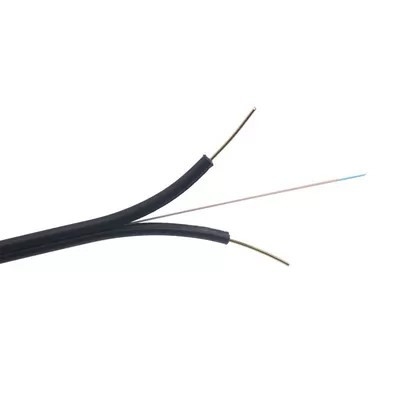

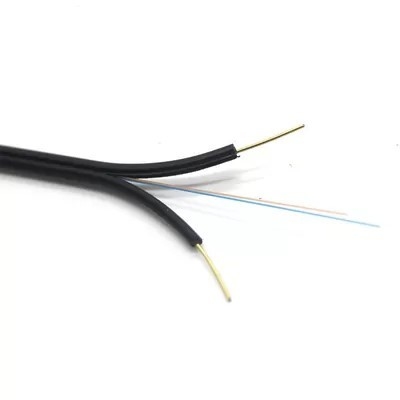

Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6 Core Comms Cable | Fiber Type | Single-Mode G657A1 |
|---|---|---|---|
| Number Of Fiber | 1 | Construction | Steel Messenger |
| Bending Radius | 10D/20D (mm) | Outer Jacket Materail | LSZH |
| Samples | In Stock | Highlight | 10D LSZH Fiber Drop Wire, G652A Fiber Drop Wire, G652A 6 Core Comms Cable |
| Highlight | Fiber Drop Wire G657A1,Fiber Drop Wire G652D,G652A 6 Core Comms Cable |
||
Product Description
Indoor LSZH Fiber Drop Wire G657A1 G652D G652A 6 Core Comms Cable
FTTH G657A1 G652D G652A 1 2 4 Core Communication Cable Indoor Drop Cable
FTTH indoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric strength
member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket. Ideal for use in FTTH & FTTx applications between the building’s main telecommunications room and the apartment / office consolidation point.
member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket. Ideal for use in FTTH & FTTx applications between the building’s main telecommunications room and the apartment / office consolidation point.
Features and Benefits
1. Easy to Strip
2. Direct Termination
3. Small Diameter
4. Complete Dry Design
5. Water Resistance
6. Halogen Free Fire Retardant / Low Smoke Zero Halogen
7. Flexible
8. Enforced with Non-Metallic Strength Members
1. Easy to Strip
2. Direct Termination
3. Small Diameter
4. Complete Dry Design
5. Water Resistance
6. Halogen Free Fire Retardant / Low Smoke Zero Halogen
7. Flexible
8. Enforced with Non-Metallic Strength Members
Application
1. FTTH (fiber to the home) indoor cabling and distribution.
2. Access network and local area network (LAN).
3. Indoor Interconnect and Patch-cord Applications
4. Indoor FTTH applications horizontal and riser
5. Clipping to surfaces including skirting boards
6. Short distance external use with black LSZH jacket
7. Used end users directly cabling and Fiber optic communication system
1. FTTH (fiber to the home) indoor cabling and distribution.
2. Access network and local area network (LAN).
3. Indoor Interconnect and Patch-cord Applications
4. Indoor FTTH applications horizontal and riser
5. Clipping to surfaces including skirting boards
6. Short distance external use with black LSZH jacket
7. Used end users directly cabling and Fiber optic communication system
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 2 | |
| Diameter | mm | 4.0*2.0 | |
| Weight | Kg/km | Approx.17.7 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| O.D of steel wire | mm | 1.0±0.05mm | |
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
