Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | FTTH Flat Drop Cable | Outdoor FTTH Drop Cable | Single-Mode G657A1/G652D |
|---|---|---|---|
| Number Of Fiber | 1 | Construction | Self-supporting With FRP/Steel Messenger |
| Cable Diameter | (2.0±0.2)X(5.0±0.2)mm | Outer Jacket Materail | LSZH/PVC |
| Package | Wooden Drum | Highlight | G652D Flat Drop Fiber Cable, G657A Flat FTTH Drop Cable, G657A Steel FTTH Drop Cable |
| Highlight | Self Supporting FTTH Flat Drop Cable,FTTH Flat Drop Cable G652D,G657A Steel Fiber Optic Wire |
||
Product Description

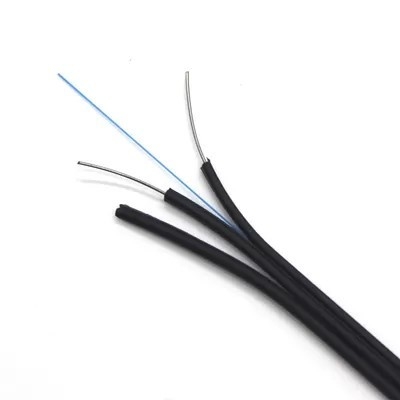

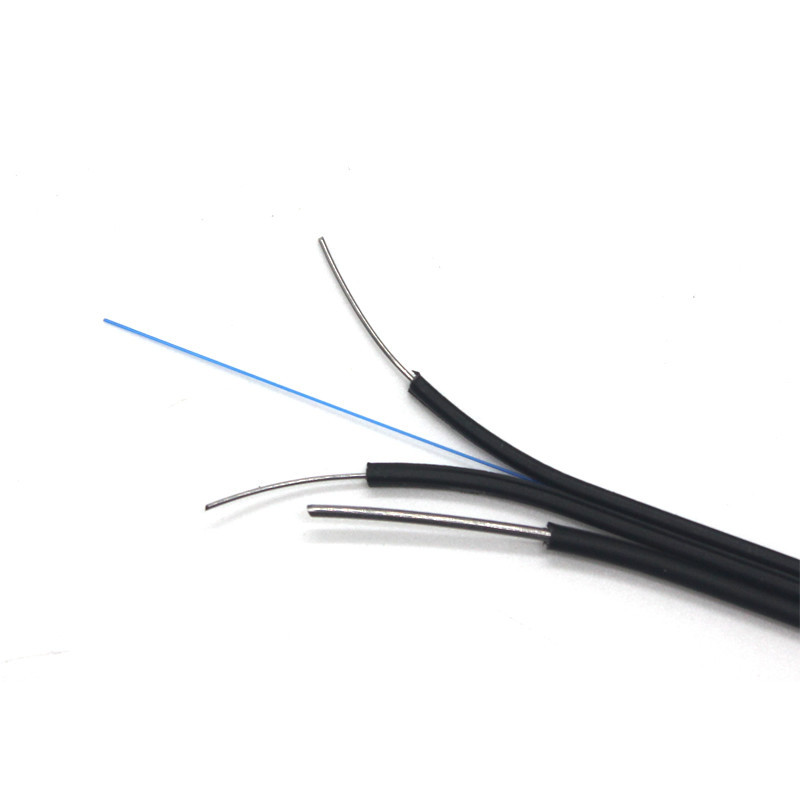

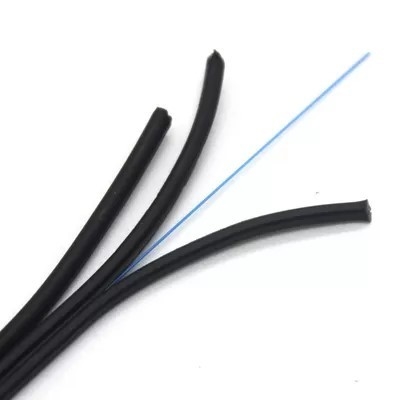

Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire
Outdoor 1 2 4 Cores Single Mode G652D G657A Steel Wire Fiber Optic Flat FTTH Drop Cable
The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.
Features
1. Suitable for indoor or duct application
2. Easy jacket removal without special tools
3. Self-support structure
4. Excellent crush and impact resistance
5. Flame Retardant LSZH jacket is applied
6. ITU-T G.657 fiber is available
7. Available from 1 to 8-fiber counts
1. Suitable for indoor or duct application
2. Easy jacket removal without special tools
3. Self-support structure
4. Excellent crush and impact resistance
5. Flame Retardant LSZH jacket is applied
6. ITU-T G.657 fiber is available
7. Available from 1 to 8-fiber counts
Application
1. Access network, fiber to the home
2. Used end users directly cabing
3. Outdoor cabling and distribute
1. Access network, fiber to the home
2. Used end users directly cabing
3. Outdoor cabling and distribute
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 2 | |
| Diameter | mm | 5.0*2.0 | |
| Weight | Kg/km | Approx.21 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| O.D of steel wire | mm | 1.0±0.05mm | |
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
