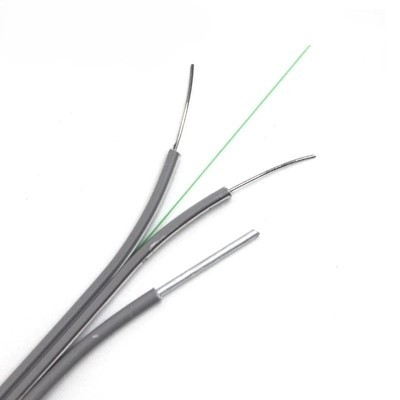

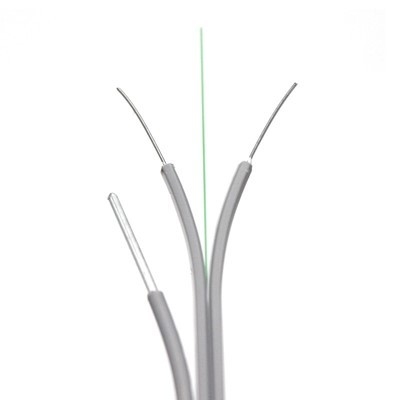

FTTH Dropcore Mini Figure 8 Fiber Optical Drop Cable 2 Core 4 Core 6 Core 48 Core
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optical Drop Cable | Fiber Type | Single-Mode G657A1/G652D |
|---|---|---|---|
| Number Of Fiber | 2 | Cable Diameter | (2.0±0.2)X(5.0±0.2)mm |
| Outer Jacket Materail | LSZH | Tensile Strength | 100/200N |
| Weight | 21KG | Highlight | Mini Figure Optical Drop Cable, FTTH Dropcore Optical Drop Cable, Small Fig Fiber Drop Cable |
| Construction | Self-supporting With FRP/Steel Messenger | ||
| Highlight | Figure 8 Fiber Optical Drop Cable,Fiber Optical Drop Cable 2 Core,Fiber Optical Drop Cable 4 Core |
||
Product Description
Outdoor self-supporting steel wire drop fiber optic cable 1 2 4 6 core g657a1 ftth drop wire Cable,FTTH
outdoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric
strength member made of three steel wire and a LSZH outer jacket. Designed for outdoor installation the
cable is well suited for connections between the dome closure and small dwelling unit / warehouse and
independent villas.
single mode 1core 2 Core G657A LSZH Outdoor Fiber Optic FTTH Drop Cable
Feature:
1. Robust and lightweight
2. Colour coded fibers for easy identification
3. LSZH jacket for internal use
4. Steel wire support
1. Robust and lightweight
2. Colour coded fibers for easy identification
3. LSZH jacket for internal use
4. Steel wire support
Application
1. Outdoor aerial application
2. Used in the FTTH projects
3. High performance optical network operation
4. High speed optical routes in building
2. Used in the FTTH projects
3. High performance optical network operation
4. High speed optical routes in building
Structure
| Structure | Unit | Parameter | |
| Fiber count | Fibers | 2 | |
| Diameter | mm | 5.0*2.0 | |
| Weight | Kg/km | Approx.21 | |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| O.D of steel wire | mm | 1.0±0.05mm | |
| Strength member | mm | 0.5mm FRP | |
| Tensile strength | N | 1500 | |
| Crush Resistance | N | 2200 | |
| Bending Radius | Dynamic | 30×Cable Diameter | |
| Static | 15×Cable Diameter | ||
| Operating Temperature | ℃ | -40 --- +70 | |
Test Datasheet
| Category | Description | Specifications | |
| G.657A1 | |||
| Optical Specifications | Attenuation | @1310-1625nm | ≤0.36dB/km |
| @1383±3nm | ≤0.36dB/km | ||
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius ,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
