High Strength 24 Core Multimode Fiber Optic Cable LSZH / PVC Outer Sheath
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Strength Member | Aramid Yarn | Name | 24 Core Multimode Fiber Optic Cable |
|---|---|---|---|
| Jacket Color | Yellow, Orange,Aqua Black | Outer Sheathsion | LSZH Or Pvc |
| Highlight | Fiber Optic Drop Cable, Breakout Fiber Optic Cable, PVC 24 Core Multimode Fiber Optic Cable | ||
| Highlight | 24 Core Multimode Fiber Optic Cable,Multimode Fiber Optic Cable 24 Core,24 Core Fiber Optic Cable Multimode |
||
Product Description
Product Description
24 Fiber Multimode Fan-out Indoor Breakout Fiber Optic Cable with High Strength
Mulit Purpose Distribution Cable use simplex cable (φ900μm tight buffer, aramid yarm as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallics strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Feature
1.Stranded non-metallic strength member structure ensure the cable endure large tensile strength.
2.The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
3.Storage Operating Temperature: -20ºC~+60ºC, Installation Temperature: -5ºC~+50ºC.
Application
1.Indoor cable distribution.
2.For intra-building backbone cabling including floors, terminal boxex and work stations.
3.For short and middle distance direct terminals intra-buildings and within different buildings, each sub-cable unit can be directly connected by standard connector.
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2-48 | |
| Tight-buffered Fiber | Dimension | 850µm±50µm |
| Material | PVC | |
| Color | White | |
| Simplex Cable | Dimension | 1.9mm±0.1mm |
| Material | LSZH | |
| Color | Yellow | |
| Strength Member | Kevlar | |
| Printing Marks | (1)-(48) | |
| Central Strength Member | Diameter | 3.8mm±0.1mm |
| Material | FRP+LSZH | |
| Color | Yellow | |
|
Outer Jacket |
Dimension | 14.5mm±0.5mm |
| Material | LSZH | |
| Color | Yellow | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -10~+50 |
| Operating Temperature | ºC | -20~+60 |
| Storage Temperature | ºC | -20~+60 |
Technical Parameter
| Geometical Characteristics | |||||||
| Fiber Count | 4 | 6 | 8 | 12 | 16 | 18 | 24 |
| Break-out Cable Diameter (mm) | 7.5 | 8.5 | 10 | 12.5 | 12.5 | 12.5 | 14.5 |
| Break-out Cable Weight (kg/km) | 45 | 62 | 84 | 138 | 150 | 158 | 202 |
| TBF Diameter (μm) | 900±50 | ||||||
| Mechanical Characteristics | |||||||||
| Max Lood (N) | Long term | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Short term | 600 | 600 | 600 | 600 | 600 | 600 | 600 | ||
| Bending Radius (mm) | Dynamic | 20*D (D: Cable Diameter) | |||||||
| Static | 10*D (D: Cable Diameter) | ||||||||
| Fiber | |
| Fiber type (core/ cladding dimension) | 9/125 50/125 62.5/125 |
| Transmission Characteristics | |||
|
SM (1310/1550 nm) |
50/125 (850/1300 nm) |
62.5/125 (850/1300nm) |
|
| Max Attenuation (dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
| Typical Attenuation (dB/km) | 0.40/0.25 | 3.1/1.0 | 3.0/1.0 |
| Mini Bandwidth (Mhz.km) | -- | 400/400 | 160/500 |

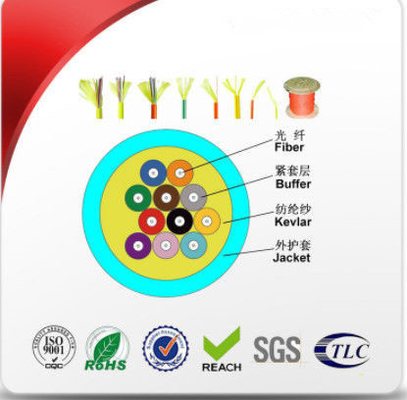

Product Structure
