Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 200 |
| Price | 5-200RNB/P |
| Packaging Details | cardboard box |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 2000 copies/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Pigtail Single Mode | Polish | UPC,APC |
|---|---|---|---|
| Fiber Type | SM/MM | Connector | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO |
| Cable Jacket | PVC,LSZH,OFNR,OFNP | Highlight | SC APC Fiber Optic Pigtail, Simplex Fiber Optic Pigtail, Single Mode Ofc Pigtail |
| Highlight | Fiber Optic Pigtail Single Mode,Lightweight Fiber Optic Pigtail,Simplex SC APC Fiber Pigtails |
||
Product Description

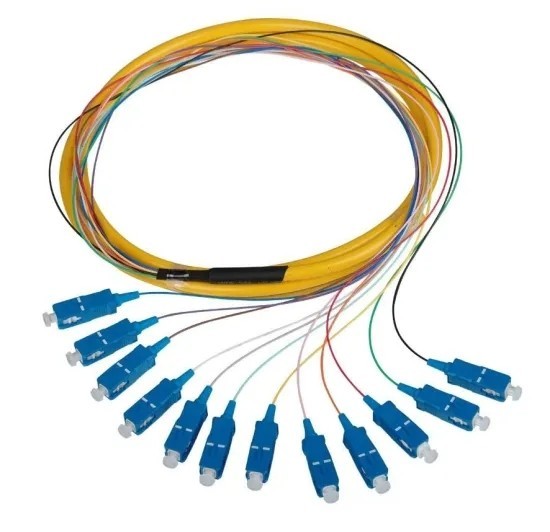

Fiber Optic Single Mode Simplex SC/APC Fiber Optic Pigtail
Description
Fiber optic pigtails offer a rapid means of creating communication devices in the field. They are fashioned, produced, and evaluated in accordance with industrial protocols and performance requirements, ensuring that they fulfill even the most rigorous mechanical and performance specifications.
Features
We offer SC, LC, FC, MU, ST, MT-RJ, and E2000 connectors.
Our polishing meets superior qualified standards for PC, APC, UPC, and SPC.
You have the option of choosing cables with a diameter of φ0.9mm, φ2.0mm, or φ3.0mm.
We have single mode (9125) or multi-mode (50/125 or 62.5/125) fibers available.
We offer fiber bunches, ribbon fan-outs, and pigtails.
Our connectors are available in simplex and duplex configurations.
Our connectors have low insertion loss and high return loss.
Our connectors are highly exchangeable and durable. We welcome customized specifications.
Size Information
|
Item
|
SM(Single Mode)
|
MM(Multimode)
|
|||
|
Fiber Cable Type
|
G652D/G655/G657A1/G657A2
|
OM1
|
OM2/OM3/OM4
|
||
|
Fiber Diameter (um)
|
9/125
|
62.5/125
|
50/125
|
||
|
Cable OD (mm)
|
0.9/1.6/1.8/2.0/2.4/3.0
|
||||
|
Endface Type
|
PC
|
UPC
|
APC
|
UPC
|
UPC
|
|
Typical Insertion Loss (dB)
|
<0.2
|
<0.15
|
<0.2
|
<0.1
|
<0.1
|
|
Return Loss (dB)
|
>45
|
>50
|
>60
|
/
|
|
|
Insert-pull Test (dB)
|
<0.2
|
<0.3
|
<0.15
|
||
|
Interchangeability (dB)
|
<0.1
|
<0.15
|
<0.1
|
||
|
Anti-tensile Force (N)
|
>70
|
||||
|
Temperature Range (ºC)
|
-40~+80
|
||||
