OPGW Optical Fiber Ground Wire Cable 48 Core 220kv Overhead Ground The Manufacturer With The Floor Price
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | OPGW |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C, T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Replacemnet Of Aerial Ground Wire | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Type | Professional Manufactures | Cable Diameter | 9-18.2mm |
| Package | Iron-wooden Reel | Highlight | Waterproof Fiber Optic Cable, Optical Fiber Ground Wire |
| Name | OPGW Cable | ||
| Highlight | 48 core optical fiber ground wire,48 core optical fiber composite overhead ground wire,g652d optical fiber ground wire |
||
Product Description
Product Description
48 Core Self-Supporting Aerial Composite Overhead Ground Wire
Optical Fiber Composite Overhead Ground wire (OPGW) is a type of cable that is used in overhead power lines. Such cable combines the functions of grounding and communications.
An OPGW cable contains a tubular structure with one or more optical fibers in it, surrounded by layers of steel and aluminum wire.It is mainly used for communication lines of 110kV, 220kV, 500kV, 750kV and new overhead high-voltage transmission systems. It also can be used to replace the existing ground wire of the old overhead high-voltage transmission system.
The OPGW cable is run between the tops of high-voltage electricity pylons. The conductive part of the cable serves to bond adjacent towers to earth ground, and shields the high-voltage conductors from lightning strikes. Special structures can be customized according to user needs.
Applications
1.Adapt to replace the aged ground wire and new structure of high voltage ground wire.
2.lighting protection and conduct the short circuit current
3.OPGW can replace conventional ground wire of old power line with increasing fiber communication function.
Technical Data
| Structure Details | Named | No. | Diameter | ||
| Center | 20%AS wire | 1 | 2.70 | mm | |
| Layer 1 | 20%AS wire | 4 | 2.70 | mm | |
| SUS-Tube | 2 | 2.70 | mm | ||
| Layer 2 | 20%AS wire | 10 | 2.70 | mm | |
| According to IEEE std 1138,IEC 60794-4 standards | |||||
| Fiber No. & Type | 48 | G652D | |||
| Standard Diameter | 13.50 | mm | |||
| Supporting Cross Section | 97.30 | mm2 | |||
| Section of AS wire | 97.30 | mm2 | |||
| Approximate mass | 687.0 | kg/km | |||
| Rated Tensile Strength | 117.0 | kN | |||
| Maximum Allowable Tension(40%RTS) | 46.8 | N/mm2 | |||
| Everyday Stress(25%RTS) | 29.3 | N/mm2 | |||
| Strain Margin Stress(70%RTS) | 81.9 | N/mm2 | |||
| Modulus of Elasticity | 162.0 | GPa | |||
| Thermal Elongation Coefficient | 13.0 | ×10-6/ºC | |||
| Calculated D.C. Resistance at 20ºC | 0.878 | Ω/km | |||
| Short-Circuit Current Capacity(40~200ºC, 0.25s) | 45.3 | kA2·s | |||
| Ratio between Pull and Weight | 17.40 | km | |||
| Temperature | Installation | -10ºC~+50 | ºC | ||
| Range: | Transportation and Operation | -40ºC~+80 | ºC | ||

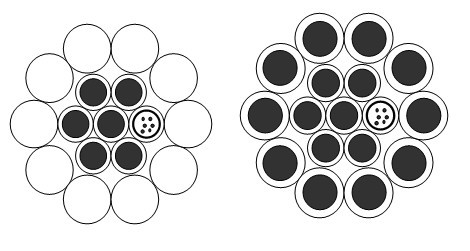

Cross Section
