60 Core OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable double layer stranded OPGW
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | OPGW |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication, Aerial, Telecom, Network | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Cable Diameter | 9-18.2mm | Bending Radius | 25 Times Cable Diameter |
| Package | Iron-wooden Reel | Highlight | 60 Core OPGW Fiber Optic Cable, Outdoor Aerial Fiber Optic Cable, Double Layer Stranded OPGW |
| Name | OPGW Cable | ||
| Highlight | stranded opgw ground wire,stranded opgw optical ground wire,g652d opgw ground wire |
||
Product Description
OPGW Optical Ground Wire 60 Core Outdoor Aerial Fiber Optic Cable

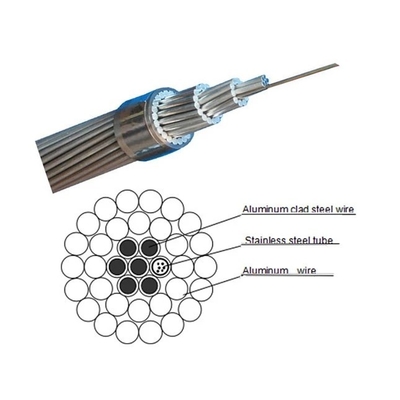

The opgw cable central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.
Features
1.Large diameter, large fiber capacity
2.The structure is stable and the reliability is high
3.Excellent capability against side and outstanding short circuit current capacity
4.The optimum stranding design can obtain the surplus length of secondary optical fiber
5.The number of strands can be designed in two or three layers
6.Match with common ground wires
Speicfication
| Cable Count | Out sheathDiameter(MM) | Weight(KG) | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius(MM) | Storage temperature(°C) | |||
| short term | long term | short term | long term | short term | long term | ||||
| 60 | 10.5 | 90 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~70 |
| Cable model | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
| Number /diameter(mm) of stainless steel tube | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| Number /diameter of AL wire(mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| Number /diameter of ACS wire(mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Diameter of Cable (mm) | 10.5 | 12.0 | 13.0 | 14.0 | 15.0 |
| RTS(KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg/km) | 415 | 320 | 374 | 432 | 527 |
| DC resistance(200C W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity(Gpa) | 162.0 | 96.1 | 95.9 | 95.6 | 97.8 |
| coefficient of Linear thermal expansion(1/×10-6) | 12.6 | 17.8 | 17.8 | 17.8 | 17.2 |
| Short circuit capacity (kA²s) | 24.0 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (C) | 200 | 200 | 200 | 200 | 200 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
