Outdoor PLC Fiber Splitter Distribution Box Wall Mounted Fiber Optical Distribution Box

Outdoor PLC Splitter Wall Mounted Fiber Optical Distribution Box

Description

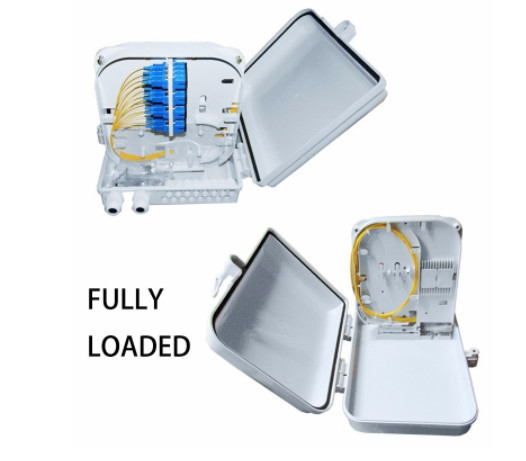

This plastic distribution box,with insert-stlye splitters,suitable for outdoor,corridor or weak current silo. It can be used for local cable or drop cable end and sub-distribution; also it can be used for protective connection of cable and layout pigtails,and fiber optic terminations of access network,with the advantage of light,small,convenience of transportation and installation and capacity of 16 cores or 32 cores.

Feature

• The box is made of imported flame retardant material,with aging resistant and ultra violet resistant characters;
• Sealing with pressed strip,waterproof and dustproof with Ip65;
• Special screw and key for its door lock,can be installed on wall or mounted on pole;
• Spare pigtails and droop cable can be save in the storage part,convenience for maintenance;

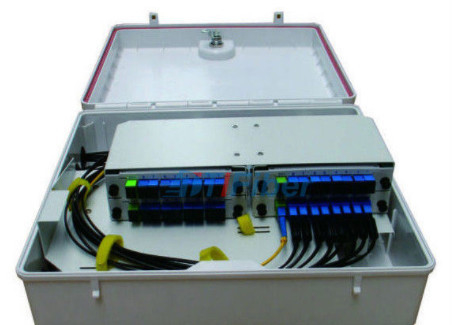

• Special lock device for outlet of drop cable,Bilayer structure,bottom for splicing and upper layer for splitting and distribution.The installing plate can be turn over for convenience of installation and operation;
• With 2/4 standard slot position for the installation of insert-style splitters of 1:8,1:16,1:32;

Application

• Widely used in FTTH access network.
• Telecommunication networks.
• CATV Networks.
• Data communications networks.
• Local Area Networks.

• Specification

  Model	TTI/FDB-32D
  Size(mm): L*W*H	350*340*120
  Cable ports	4 cable ports
  Max capacity of splice	1pcs 1*32PLC
  Net Weight (kg)	3.48
  Outer carton weight (kg)	22.3
  Package	6PCS/CTN
