Anti Water 12 Core Fiber Optic Distribution Box Round Wire Material Shape
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 200 |
| Price | 20-5000RNB/Each |
| Packaging Details | cardboard box |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | T/T,L/C |
| Supply Ability | 2000 copies/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Distribution Box | Type | Outdoor Wall Mountable |
|---|---|---|---|
| Install Splitter | YES | Opening Type | Anti-removable Screw-Type |
| Splice Tray Capacity | 12 Fibers | Function | FTTX |
| Out Cable Size | 2.0 3.0 4.2 4.6 4.8 Mm | Samples | Support |
| Highlight | Waterproof fiber optic distribution box,Fiber Optic Distribution Box 12 Core,FTTH Fiber Optic Terminal Box |
||
Product Description
Features
Specifications
Fiber Counts: 2-144 Fiber
Brand Name: MingTong
Material: ABS/PC
Connection Structure: Optical Fiber
Material Shape: Round Wire
Application: Communication, Medicine, Fiber Optic Equipments
Certification: RoHS, SGS, ISO
Packaging Details: 100PCS/CTN
Highlight:
Product Description
fiber optic termination box
,ftth distribution box
Basic Infomation
Place of Origin: Dong Guan city China
Brand Name: MingTong
Certification: RoHS, SGS, ISO
Model Number: FTTH BOX
Product Description

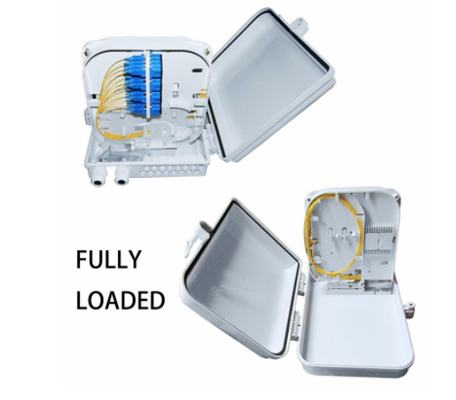

Waterproof ABS 12 core fiber optic distribution Box FTTH Box
Product Description
This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable.
The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor.
FDB-2H fiber optical information faceplate
Performance index
Environmental reguirement
Working temprature : -40ºC~+85ºC
Relative humidity : ≤85% (+30ºC)
Atmospheric pressure : 70Kpa~106Kpa
Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times
Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);
IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,
no flashover; U≥3000V
