Overhead Ground Wire OPGW Cable Aluminum Clad Steel Wire Optical Fiber OPGW Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | OPGW |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Replacemnet Of Aerial Ground Wire | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Type | Professional Manufactures | Cable Diameter | 9-18.2mm |
| Package | Iron-wooden Reel | Highlight | Overhead Ground Wire OPGW Cable, Aluminum Clad Steel OPGW Cable, Overhead Optical Fiber OPGW Cable |
| Jacket Material | Aluminium-coated Steel/ACS | Name | OPGW Cable |
| Highlight | steel opgw cable,steel overhead ground wire,g652d opgw cable |
||
Product Description
Product Description
OPGW Optical Ground Wire 24 Core Outdoor Aerial Fiber Optic Cable
1. Description
The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.
2. Features
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber
• The number of strands can be designed in two or three layers
• Match with common ground wires
3.Speicfication
| Structure | Max fiber count | AS sectional area | Dia.(mm) | Weight (kg/km) | RTS(kN) | 20°C DC resistance (O/km) | 40-200°C Allowable short circuit current capacity(KA2.S ) | |
| OPGW-24B1.3-100-[118;50] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈100 | 13.2 | ≤674 | ≥118 | ≤0.93 | ≥50 |
| 11/2.8/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-100-[60;74] | 1/2.6/40AS+5/2.5/40AS+ | 24 | ≈100 | 13.2 | ≤479 | ≥60 | ≤0.49 | ≥74 |
| 11/2.8/40AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[133;63] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈110 | 14 | ≤760 | ≥133 | ≤0.83 | ≥63 |
| 10/3.2/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[140;68] | 1/2.8/20AS+5/2.7/20AS+ | 24 | ≈110 | 14.3 | ≤791 | ≥140 | ≤0.80 | ≥68 |
| 11/3.05/20AS,Unit 1/2.6 | ||||||||
| OPGW-24B1.3-110-[67;95] | 1/2.9/20AS+5/2.8/20AS+ | 24 | ≈37 | 14.1 | ≤473 | ≥67 | ≤0.40 | ≥95 |
| 12/2.8/AA,Unit 1/2.7 | ≈74(AA) |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

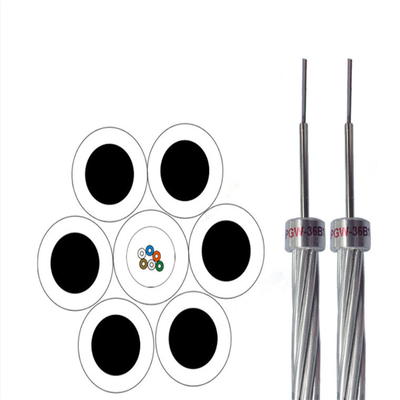

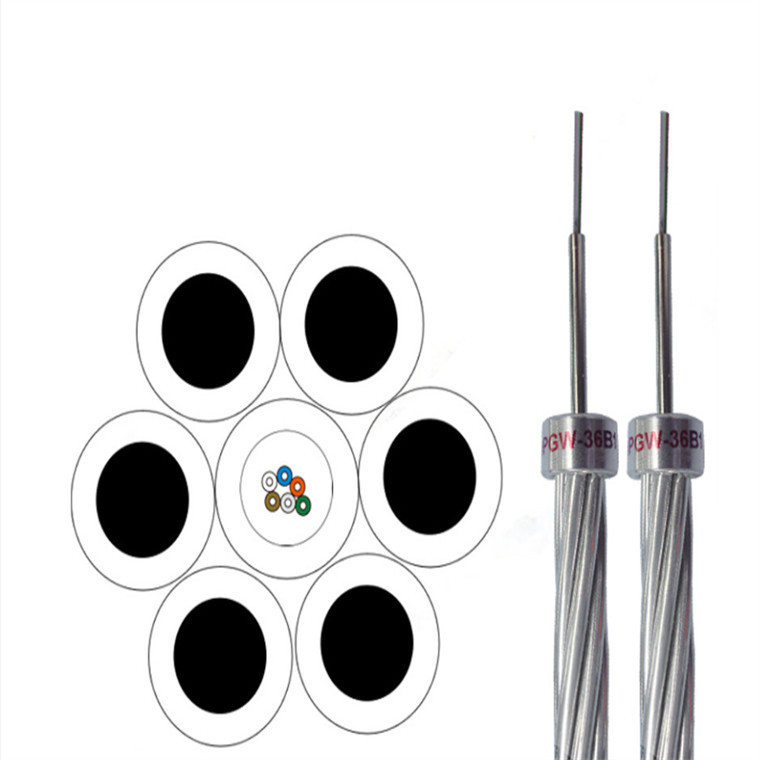

4.Structure and Product Pictures
5. Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
