12 SWG ACSR Wire Overhead Line Conductor ACSR Far East Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | OPGW |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | OPGW Cable | Application | Replacemnet Of Aerial Ground Wire |
|---|---|---|---|
| Fiber | G652D, G657A1, G657A2 | Type | Professional Manufactures |
| Cable Diameter | 9-18.2mm | Package | Iron-wooden Reel |
| Highlight | 12 Swg Acsr Wire, 12 Swg Acsr Overhead Line Conductor, Acsr Far East Cable | ||
| Highlight | 12 SWG ACSR Wire,ACSR Far East Cable,ACSR Wire Overhead Line |
||
Product Description
Product Description

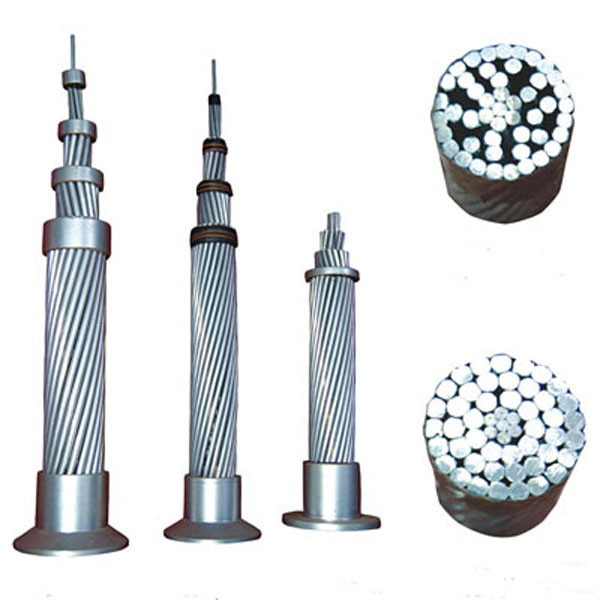

12 Swg Acsr Wire Overhead Line Conductor Acsr Far East Cable
Application Features
ABC systems are used in city power grid transmission lines, with an operating voltage of up to 600/1000 volts. They are mainly used for overhead single-phase and three-phase electricity distribution, as well as other purposes. They have a stable working temperature range of -10°C to 80°C and are economical, with good electrical properties and a lower cost than copper cables. They are also flexible and easy to install, making them suitable for distribution and other applications. They provide safety by preventing electric short circuits and potential fire risks, while being durable against UV radiation, moisture, and corrosion. Additionally, they have an aesthetically pleasing finish and are adaptable to the physical properties and electrical needs of the African environment and market.
Specifications
|
Conductor Technical Structure
|
Unit
|
Value
|
||
|
Structure |
Center: steel wire
|
Nos./mm |
1/2.0
|
|
|
Layer 1:steel wire
|
6/2.0
|
|||
|
Layer 2: Aluminum wire
|
10/2.57
|
|||
|
Layer 3: Aluminum wire
|
16/2.57
|
|||
|
Standard
|
/
|
GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498
|
||
|
Stranding direction of outer layer
|
Direction
|
Right-hand
|
||
|
Conductor diameter
|
mm
|
16.28±1％
|
||
|
Cross section
|
mm2
|
156.8±1％
|
||
|
Conductor weight
|
kg/km
|
547.8±1％
|
||
|
Rated tensile strength
|
kN
|
52
|
||
|
Modulus of Elasticity
|
GPa
|
73.9
|
||
|
Coefficient of linear expansion
|
10-6/℃
|
18.9
|
||
|
Max. DC Resistance at 20℃
|
Ohm/ft
|
0.637
|
||
|
Lay ratio |
Aluminum layer
|
times |
16-wire layer 10-14
10-wire layer 10-16 |
|
|
Steel layer
|
6-wire layer 18-30
|
|||
|
Properties of Aluminum Wire (Before Stranding)
|
Unit
|
Value
|
|
Diameter and tolerance
|
mm
|
2.57±0.03
|
|
Min. tensile strength
|
MPa
|
175
|
|
Min. elongation at 250mm
|
%
|
1.7
|
|
Max. resistivity at 20℃
|
Ω·mm2/m
|
0.028172
|
|
Properties of Steel wire (Before stranding)
|
Unit
|
Value
|
|
Diameter and tolerance
|
mm
|
2.0±0.02
|
|
Min. tensile strength
|
MPa
|
1410
|
|
Min. tension at 1% elongation
|
MPa
|
1280
|
|
Min elongation at 250 mm
|
%
|
3.5
|
|
Class of zinc coating
|
/
|
Class A
|
|
Zinc coating quality
|
g /mm²
|
230
|
|
Conductor diameter
|
MM
|
6.0
|
|
Rated tensile strength
|
KN
|
/
|
