High Strength Optical Fiber Ground Wire , OPGW Fiber Cable 20.0mm

  • High Strength Optical Fiber Ground Wire , OPGW Fiber Cable 20.0mm
Place of Origin Dongguan CHINA
Brand Name MingTong
Certification ISO
Minimum Order Quantity 20km
Price 500-5000RNB/KM
Packaging Details Wooden scroll + cardboard box / Wooden scroll + wooden board
Delivery Time It depends on the actual situation
Payment Terms L/C,T/T
Supply Ability 200km/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Optical Fiber Ground Wire Highlight Opgw Fiber Cable, Waterproof Fiber Optic Cable
Highlight

Optical Fiber Ground Wire OPGW

,

High Strength Optical Fiber Ground Wire

,

OPGW Fiber Cable 20.0mm
Leave a Message
Product Description

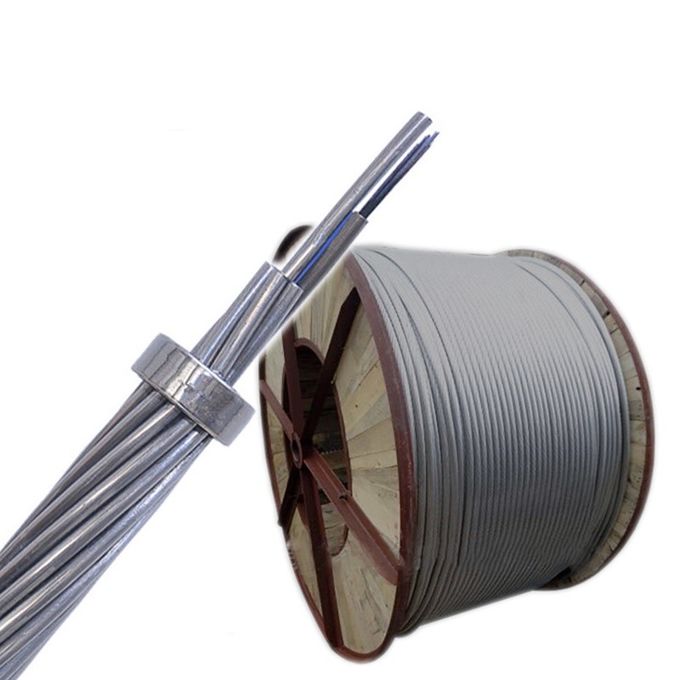

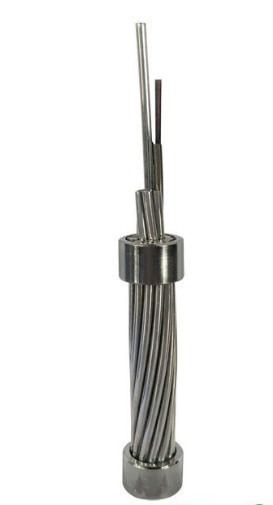

High Strength Optical Fiber Ground Wire , OPGW Fiber Cable



An optical ground wire (also known as an OPGW or, in the IEEE standard, an optical fiber composite overhead ground wire) is a type of cable that is used in overhead power lines. Such cable combines the functions of grounding and communications. It has central stainless steel tube structure and layer stranding structure. An OPGW cable contains a tubular structure with one or more optical fibers in it, surrounded by single or double layers of aluminum clad steel wires(ACS) or mixed ACS wires and aluminum alloy wires. The OPGW cable is run between the tops of high-voltage electricity pylons. The conductive part of the cable serves to bond adjacent towers to earth ground, and shields the high-voltage conductors from lightning strikes. The optical fibers within the cable can be used for high-speed transmission of data, either for the electrical utility's own purposes of protection and control of the transmission line, for the utility's own voice and data communication, or may be leased or sold to third parties to serve as a high-speed fiber interconnection between cities. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110KV.





Optical Fiber Characteristics





The optical, geometrical, mechanical and environment characteristics of the ITU-T G.652.D optical fiber shall be accordance with below table:

Characteristics Specified Values Units
Optical Characteristics
Mode field diameter at 1310nm 9.1±0.5 µm
at 1550nm 10.3 ± 0.7 mm
Attenuation coefficient at 1310nm ≤0.36 dB/km
at 1550nm ≤0.23 dB/km
Attenuation non-uniformity ≤0.05 dB
Zero dispersion wavelength ( λ0) 1300 ～1324 nm
Max zero dispersion slope (S0max) ≤0.092 ps/(nm2·km)
Polarization mode dispersion coefficient(PMDQ) ≤0.2
Cut-off wavelength (λcc) ≤1260 nm
Dispersion coefficient 1288～1339nm ≤3.5 ps/(nm·km)
1550nm ≤18 ps/(nm·km)
Effective group index of refraction (Neff) at 1310nm 1.466 －
at 1550nm 1.467 －
Geometric characteristic
Cladding diameter 125.0±1.0 µm
Cladding non-circularity ≤1.0 %
Coating diameter 245.0±10.0 µm
Coating-cladding concentricity error ≤12.0 µm
Coating non-circularity ≤6.0 %
Core-cladding concentricity error ≤0.8 µm
Cladding / coating concentricity error ≤12.0 µm
Mechanical characteristic
Curling ≥4 m
Proof stress ≥0.69 GPa
Coating strip force Average value 1.0-5.0 N
Peak value 1.3-8.9 N
Macro bending loss Ф60mm, 100 circles, at 1550nm ≤0.05 dB
Ф32mm, 1 circles, at 1550nm ≤0.05 dB


Items Technical Data
Stranded Core, layer 1, layer 2
Stranding direction Outer layer is right hand
Cable diameter (Nominal) 20.0mm
Cable Weight (Approx.) 1365kg/km
Supporting Cross Section AS Wire 188.5mm2
Rated Tensile Strength (RTS) 205kN
Modulus of Elasticity (E-Modulus) 162.0kN/mm2
Thermal Elongation Coefficient 13.0×10-6/K
Maximum Working Stress (40%RTS ) 82.0kN
Everyday Stress(EDS)(18%～25%RTS) 36.9~51.25kN
DC Resistance at 20℃ 0.442 ohm/km
Short time current (1.0s, 40℃～200℃) 13.62kA
Short time current Capacity I2t 185.4kA²s
Minimum bending radius Installation 30 times of cable diameter
Operation 15 times of cable diameter
Temperature Range Installation -10℃~+60℃
Storage & shipping -40℃~+60℃
Operation -40℃~+80℃

Structure   Material No. Material Diameter
Fiber G.652.D 48
Center 20%AS wire 1 Diameter 4.0mm
Layer 1 SUS Tube 4 Diameter 4.0mm
20%AS wire 2 Diameter 4.0mm
Layer 2 20%AS wire 12 Diameter 4.0mm





Fiber and Loose Tube Color Identification



The individual fiber and loose tubes shall accordance with standard TIA/EIA-598-A and the color code as below.

Steel tube 1 (No.1-12 fibers) : Single mode optical fiber (SM)

Fiber Colors

NO. 1 2 3 4 5 6 7 8 9 10 11 12
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua


Steel tube 2 (No.13-24 fibers) : Single mode optical fiber (SM)

One black tracer (50mm pitch)

NO. 13 14 15 16 17 18 19 20 21 22 23 24
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua


Steel tube 3 (No.25-36 fibers) : Single mode optical fiber (SM)

One black tracer (100mm pitch)

NO. 25 26 27 28 29 30 31 32 33 34 35 36
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua


Steel tube 4 (No.37-48 fibers) : Single mode optical fiber (SM)

One black tracer (150mm pitch)

NO. 37 38 39 40 41 42 43 44 45 46 47 48
Color Blue Orange Green Brown Grey White Red Nature Yellow Violet Pink Aqua



Packing and Shipping



The OPGW shall be tightly and uniformly wound on a strong wood-iron reel which conforms to ANSI/AA 53-1981 or equal. The reel shall be lagged with stout wood-iron battens so as to prevent the OPGW from damage in ordinary shipping, handling, storage and stringing operations.

High Strength Optical Fiber Ground Wire , OPGW Cable Proof Stress ≥0.69GPa 1

Tags:

OPGW Fiber Optic Cable

Optical Fiber Composite Overhead Ground Wire

OPGW Optical Ground Wire
