Good price aaac/acsr/aac conductor 50mm2 100mm2 acsr 1/0 conductor cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aaac/acsr/aac Conductor | Optical Union | Stainless Steel Optical Unit |
|---|---|---|---|
| Structure | 2 Layer Stranded | Outer Sheath | Aluminum-clad Steel Wires & Aluminum Alloy |
| Package | Iron-wooden Reel | Orientation Of Outer Strands | Left/right |
| Operating Temperature | -40°C To + 70°C | Highlight | Aluminum Clad Steel Wire Stranded, Opgw Cable |
| Name | OPGW Cable | ||
| Highlight | steel opgw cable,stranded opgw cable,steel opgw fiber cable |
||
Product Description

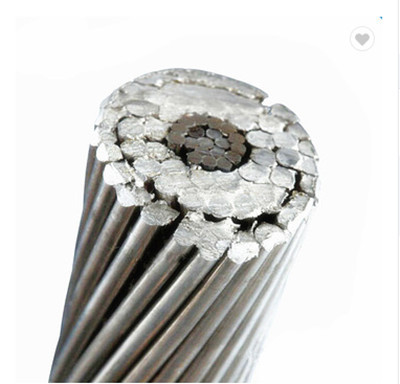

aaac/acsr/aac conductor 50mm2 100mm2 acsr 1/0 conductor cable
Application Features
ABC systems are used for transmitting electricity in city power grids. They operate at voltages of up to 600/1000 volts and are primarily used for overhead single-phase and three-phase distribution of electricity, as well as other purposes. They can operate within a stable temperature range of -10°C to 80°C, and they are economical because of their good electrical properties and lower cost compared to copper cables. They are flexible, making them easy to install and use in various applications. ABC systems are safe to use as they prevent electric short circuits and potential fire risks. They are durable and can withstand exposure to UV radiation and moisture, and are also corrosion-resistant. Additionally, ABC systems have an aesthetically pleasing finish and can adapt to the physical properties and electrical requirements of the African market and environment.
Specifications
|

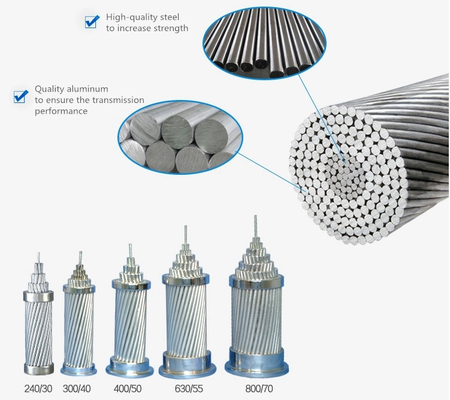

Conductor Technical Structure
|
Unit
|
Value
|
||
|
Structure |
Center: steel wire
|
Nos./mm |
1/2.0
|
|
|
Layer 1:steel wire
|
6/2.0
|
|||
|
Layer 2: Aluminum wire
|
10/2.57
|
|||
|
Layer 3: Aluminum wire
|
16/2.57
|
|||
|
Standard
|
/
|
GB/T1179/IEC 61089/ASTM B232 / B232M-2009 / B498
|
||
|
Stranding direction of outer layer
|
Direction
|
Right-hand
|
||
|
Conductor diameter
|
mm
|
16.28±1％
|
||
|
Cross section
|
mm2
|
156.8±1％
|
||
|
Conductor weight
|
kg/km
|
547.8±1％
|
||
|
Rated tensile strength
|
kN
|
52
|
||
|
Modulus of Elasticity
|
GPa
|
73.9
|
||
|
Coefficient of linear expansion
|
10-6/℃
|
18.9
|
||
|
Max. DC Resistance at 20℃
|
Ohm/ft
|
0.637
|
||
|
Lay ratio |
Aluminum layer
|
times |
16-wire layer 10-14
10-wire layer 10-16 |
|
|
Steel layer
|
6-wire layer 18-30
|
|||
|
Properties of Aluminum Wire (Before Stranding)
|
Unit
|
Value
|
|
Diameter and tolerance
|
mm
|
2.57±0.03
|
|
Min. tensile strength
|
MPa
|
175
|
|
Min. elongation at 250mm
|
%
|
1.7
|
|
Max. resistivity at 20℃
|
Ω·mm2/m
|
0.028172
|
|
Properties of Steel wire (Before stranding)
|
Unit
|
Value
|
|
Diameter and tolerance
|
mm
|
2.0±0.02
|
|
Min. tensile strength
|
MPa
|
1410
|
|
Min. tension at 1% elongation
|
MPa
|
1280
|
|
Min elongation at 250 mm
|
%
|
3.5
|
|
Class of zinc coating
|
/
|
Class A
|
|
Zinc coating quality
|
g /mm²
|
230
|
|
Conductor diameter
|
MM
|
6.0
|
|
Rated tensile strength
|
KN
|
/
|
Packing & Shipping
Standard Packaging: Wooden Wooden drums. 2000m to 6000m/drum or other required.
