OPGW-96B1 96 Core Optical Fiber Composite Overhead Ground Wire
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | Mingtong |
| Certification | ISO |
| Model Number | 20km |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | OPGW Cable | ||
|---|---|---|---|
| Highlight | OPGW-96B1 optical fiber cable,96 core overhead ground wire,composite OPGW cable with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
OPGW-96B1 96 Core Optical Fiber Composite Overhead Ground Wire

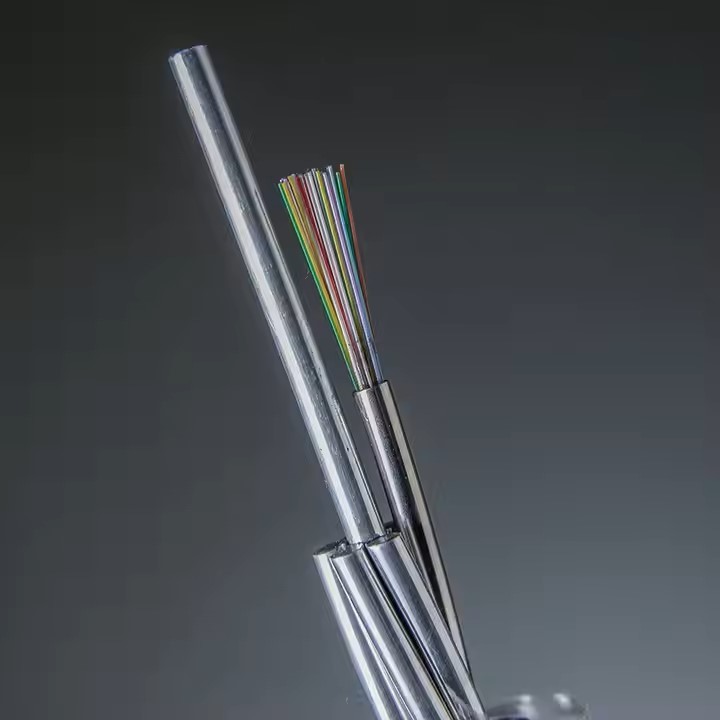

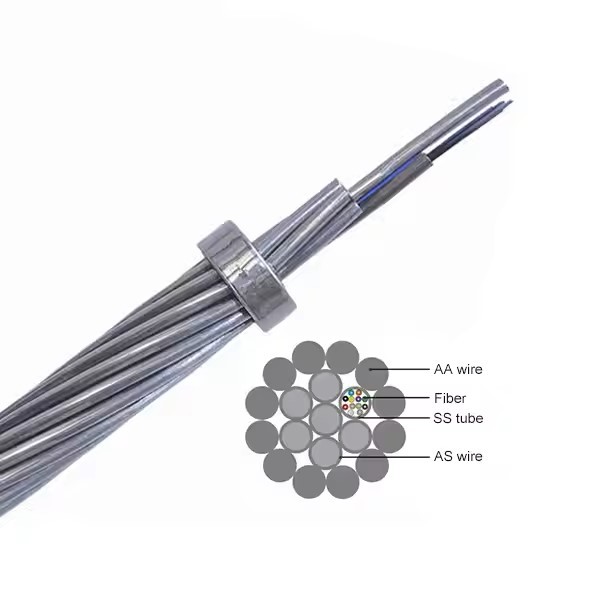

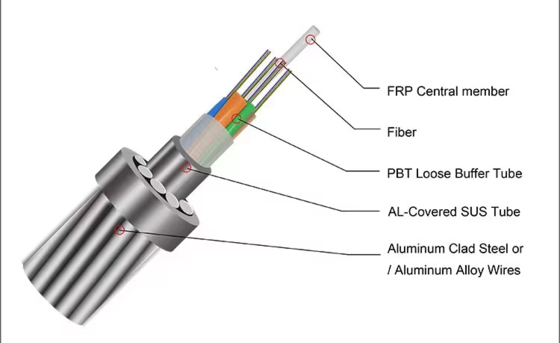

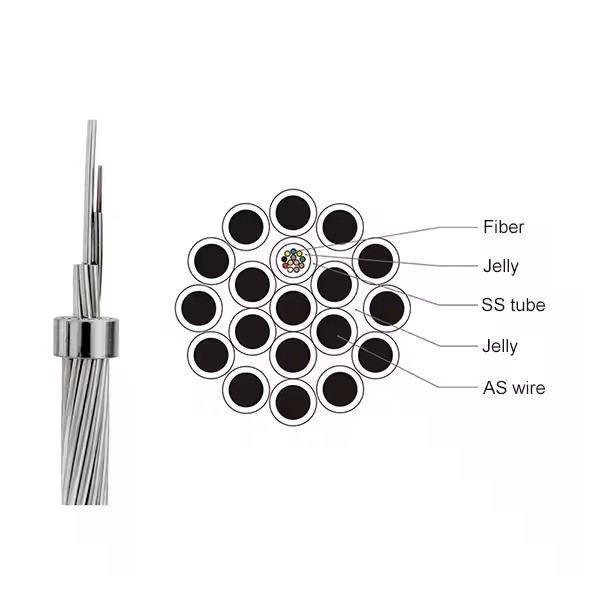

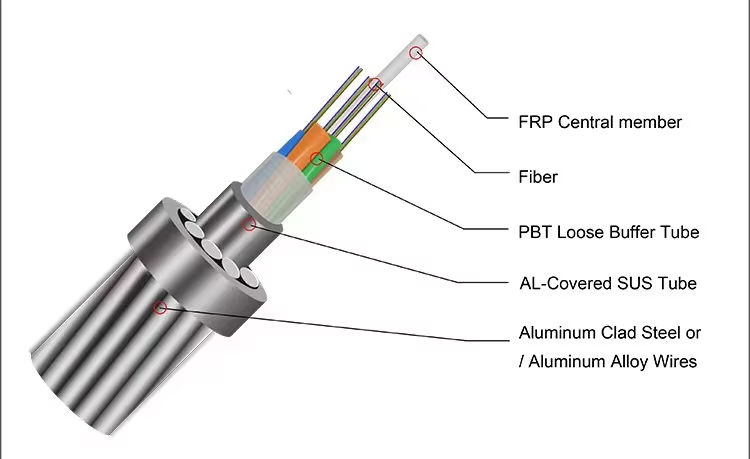

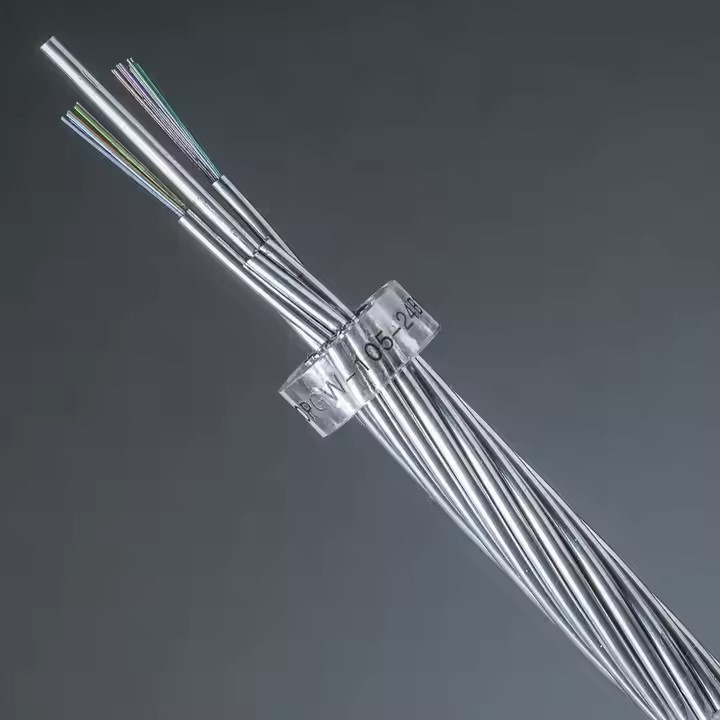

OPGW is a specialized cable structure that combines optical transmission capabilities with overhead ground wire functionality for power transmission systems. This dual-purpose solution serves both as an optical fiber cable and an overhead ground wire, providing protection against lightning strikes and conducting short circuit currents. The overhead ground wire component consists of aluminum-clad steel wire (AS) and stainless steel tubes containing optical fibers.
1. General Specifications
This specification covers the requirements for Optical Fiber Composite Overhead Ground Wires (OPGW) designed for outdoor installation. The optical fiber cable meets or exceeds the following industry standards:
- ITU-T G.650: Definitions and test methods for linear, deterministic attributes of single-mode fiber and cable
- ITU-T G.652: Characteristics of a single-mode optical fiber and cable
- IEC 60793-2-50 B1.3: Sectional specification for class B single mode fibers
- IEEE 1138: Standard Construction of Composite Fiber Optic Overhead Ground Wires (OPGW)
- ASTM B398: Standard for Aluminum-Alloy 6201-T81 Wire
- ASTM B415: Standard for Hard-Drawn Aluminum-Clad Steel Conductors
- ASTM B416: Specification for Concentric-Lay-Stranded Aluminum-Clad Steel Conductors
- EIA/TIA-455: Standard Test Procedures for Fiber Optic Components
- EIA 492A: Generic Specification for Optical Waveguide Fibers
- EIA 472A: Sectional Specification for Fiber Optic Communication Cables
2. Optical Fiber Characteristics
The optical, geometrical, mechanical and environmental characteristics of the ITU-T G.652 optical fiber comply with industry standards. Other fiber types are available upon request. Typical fiber color coding follows TIA/EIA-598 standards or can be customized.
